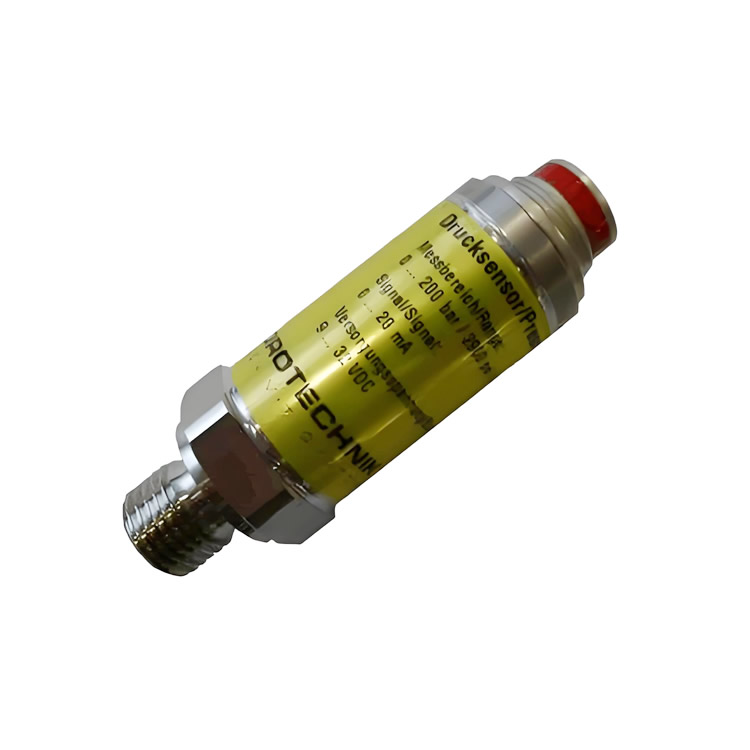

Hydrotechnik Pressure Sensor 3403-18-C3.37 Specifications
Material: Stainless steel
Power Supply Voltage: 10~30Vdc (for 0 or 4~20mA output)
Accuracy: ±0.5% of final value
Repeatability: ±0.1% of final value
Signal Output: 4~20mA (2-wire) or 0~20mA (3-wire)
Measurement Range: 1 to +6 Bar, 0 to 60 bar, 0 to 200 bar, 0 to 400 bar, 0 to 600 bar & 0 to 1000 bar (>1000 bar available upon request)
Connection: ISO228-G1/4" BSP
Seal: Fluororubber flat seal
