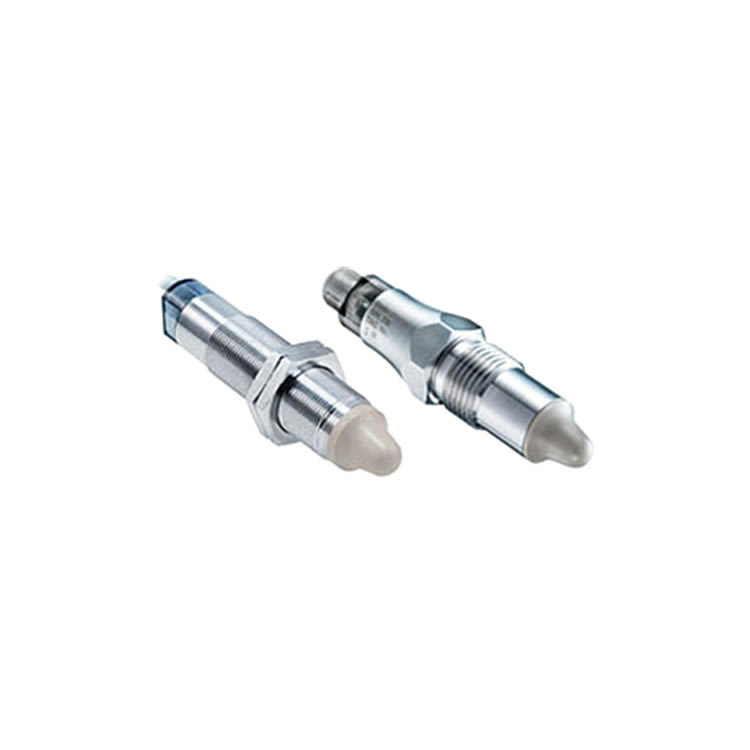

This BLS 10 Trimod’Besta Level Sensor is universally suitable for level detection and a real alternative to the tuning fork. It works in liquids of all kind, foams, bulk goods, granulates, even in liquids that are sticky, pasty and regardless of their viscosity.
On-site calibration is not necessary and the highly accurate sensor can be installed in any position. It has a very attractive, compact design and is completely maintenance free. Powered via an M12 connector it communicates its output status through a highly visible blue LED.
Features
One sensor detects different media (liquids, bulk goods, foams: sticky, pasty or high or low viscosity)
Maximum temperature stability and repeat accuracy
Resistant to shocks and vibrations
Response time < 100 ms
Fully integrated electronics
LED switching point indicator
Specifications
G½” process connection
Process temperature: -40 to +115°C
Ambient temperature: -40 to +85°C
100 bar maximum process pressure
M12 electrical connection
Power supply: 12…30 VDC, 35 mA max.
Enclosure: IP67
PNP output configuration
Housing material: 1.4404 / AISI 316L
