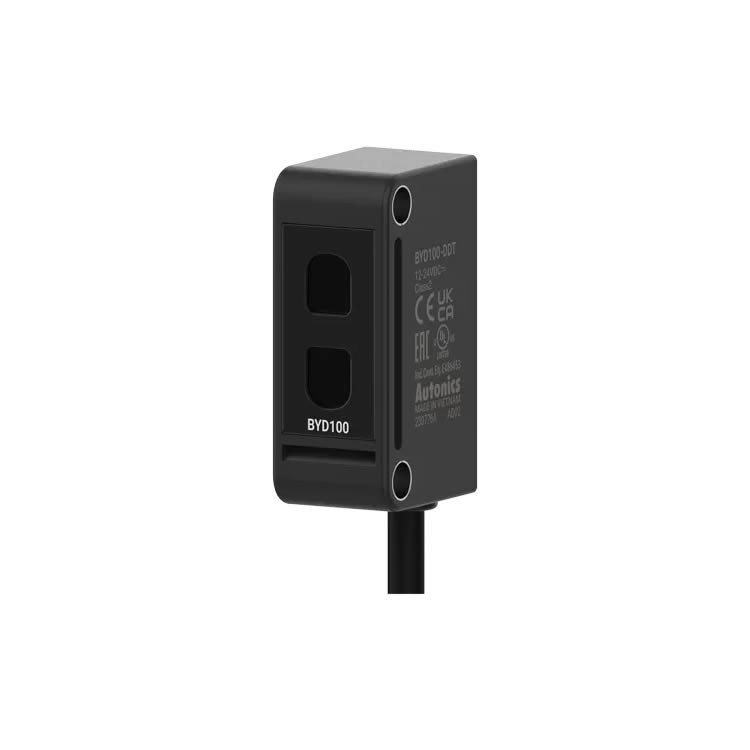

The Autonics BYD100-DDT is a compact photoelectric sensor featuring a diffuse reflection detection type with a detection distance of 100mm, suitable for detecting both opaque and semi-transparent objects. It operates using an infrared LED light source, offers a rapid response time (max. 3ms for activation, max. 100ms for reset), and is powered by a 12-24VDC ±10% supply voltage.
Sensing type : Diffuse reflective type
Sensing distance : 100mm
Sensing target : Opaque, Translucent material
Response time : Operation: Max. 3ms, Return: Max. 100ms
Light source : Infrared LED
Data sheet
| Sensing type | Diffuse reflective type |
|---|---|
| Sensing distance | 100mm |
| Sensing target | Opaque, Translucent material |
| Response time | Operation: Max. 3ms, Return: Max. 100ms |
| Light source | Infrared LED |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON |
| Weight | Approx. 75g(approx. 38g) |
| Power supply | 12-24VDC  ±10%(ripple P-P: max. 10%) |
| Current consumption | Max. 35mA |
| Control output | NPN open collector |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -20 to 65℃, storage: -25 to 70℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP50 |
| Connection type | Cable type(Ø3.5, 2m) |
| Material | Case: PC, sensing part: PC, bracket: SPCC, bolt: SCM, nut: SCM, sleeve: Brass, Ni-plate |

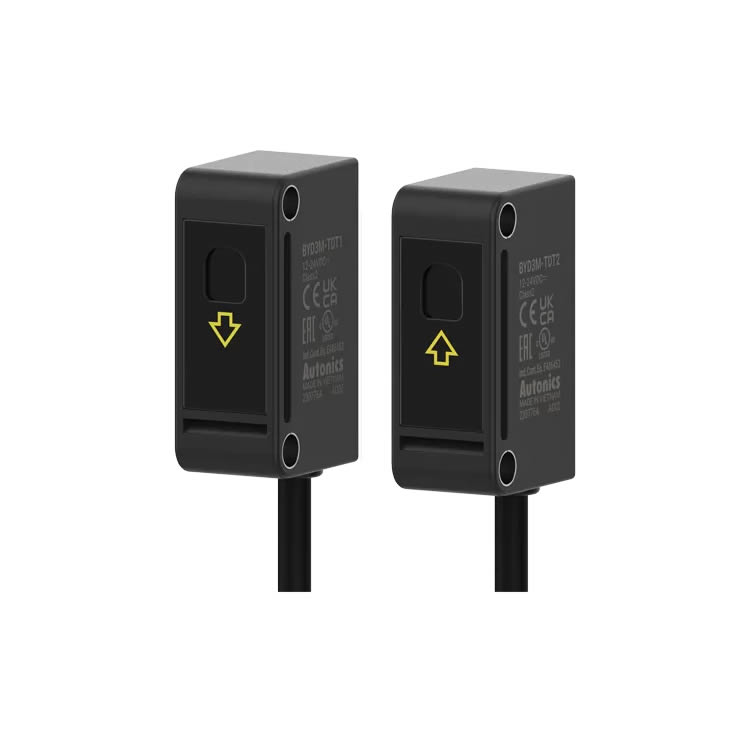

BYD Series Model:
BYD50-DDT-T、BYD50-DDT、BYD50-DDT-U、BYD3M-TDT、BYD3M-TDT-P、BYD30-DDT-T、BYD30-DDT、BYD30-DDT-U
