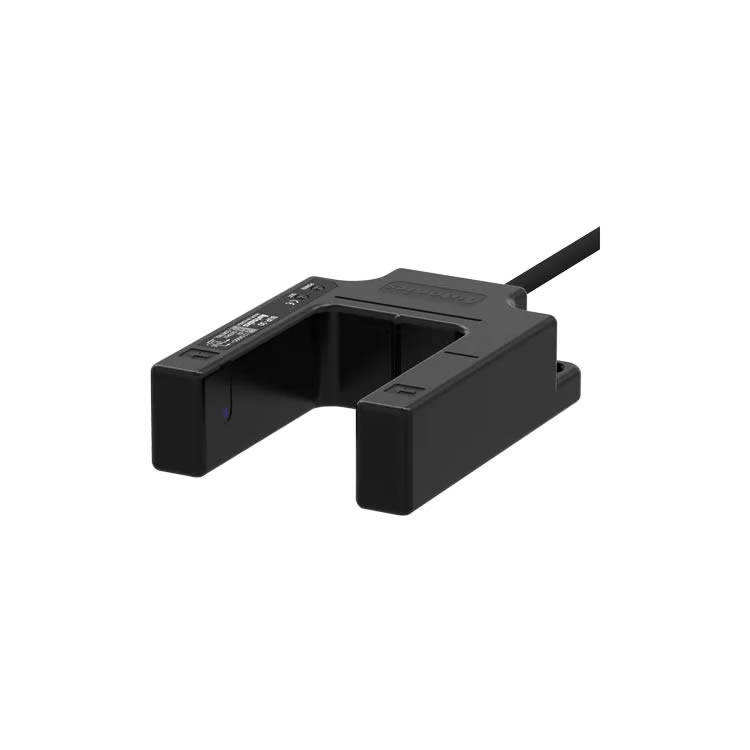

The Autonics BUP-50-E is a U-shaped photoelectric sensor with a 50mm detection distance, featuring adjustable sensitivity, a fast response time of under 1ms, and IP66 protection, suitable for versatile industrial automation applications.
Sensing type : Through-beam type
Sensing Channel : 1-channel
Sensing distance : 50mm
Sensing target : Opaquematerial of min. Ø4mm
Light source : Infrared LED(940nm)
Power supply : 12-24VDC ±10% (ripple P-P: max. 10%)
Operation mode : Light ON/Dark ON(set by control wire)
Control output : NPN open collector
Data sheet
| Sensing type | Through-beam type |
|---|---|
| Sensing Channel | 1-channel |
| Sensing distance | 50mm |
| Sensing target | Opaquematerial of min. Ø4mm |
| Light source | Infrared LED(940nm) |
| Response time | Max. 1ms |
| Power supply | 12-24VDC  ±10%(ripple P-P: max. 10%) |
| Current consumption | Max. 30mA |
| Sensitivity adjustment | Fixed |
| Operation mode | Light ON/Dark ON(set by control wire) |
| Control output | NPN open collector |

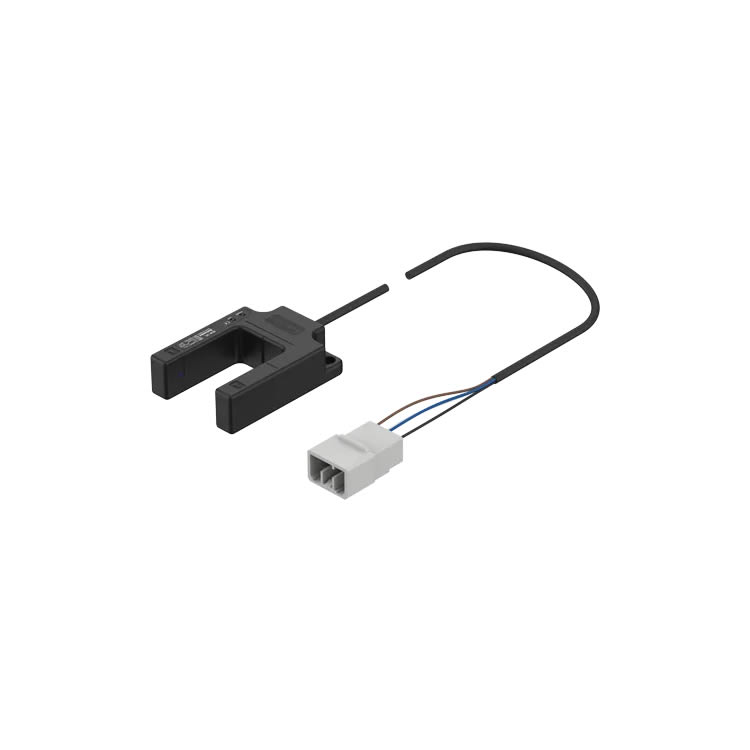

| Connection type | Cable connector type |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -25 to 65℃, storage: -25 to 70℃ |
| Protection structure | IP66 |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | Case: Acrylonitrile butadiene styrene, Cap: Polycarbonate |
| Weight | Approx. 90g |
BUP Series Model:
BUP-50-E、BUP-30-E、BUP-50S、BUP-50S-P、BUP-30S、BUP-30S-P、BUP-50、BUP-50-P、BUP-30、BUP-30-P
