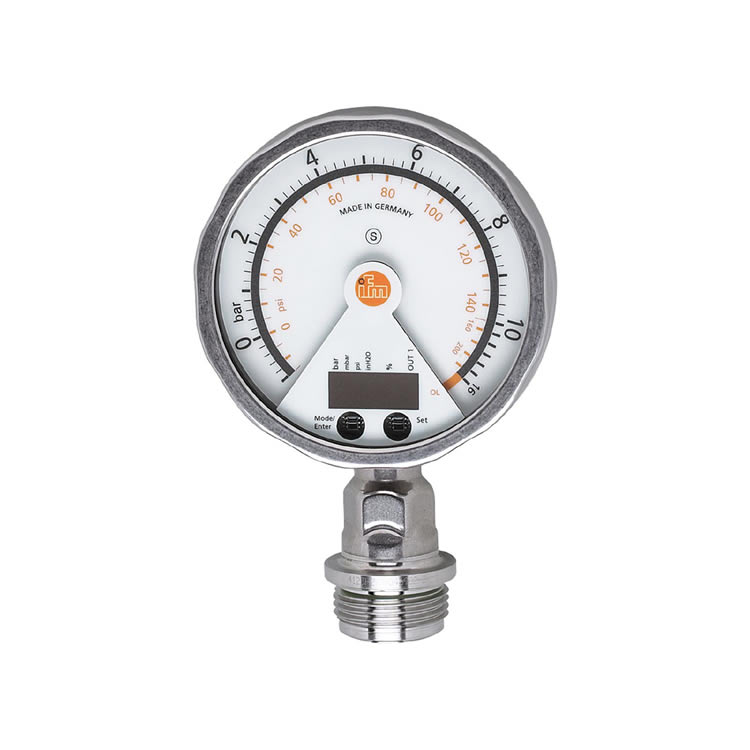

IFM PG2794 Pressure sensor
Analogue display, pressure switch and transmitter in one unit
Excellent readability also over a long distance
Rotatable display with LED bar graph for switch point indication
Hygienic, robust stainless steel housing for the requirements of the food and beverage industry
Flush process connection for use in CIP and SIP processes
| Measuring range | -1...10 bar-14.5...145 psi |
| Set point SP | -0.98...16 bar-14.2...232 psi |
| Reset point rP | -1...15.98 bar-14.5...231.8 psi |
| Analogue start point | -1...13.5 bar-14.5...195.7 psi |
| Analogue end point[bar] | 1.5...16 |
| In steps of | 0.01 bar0.1 psi |
| Ambient temperature[°C] | -25...80 |
| Storage temperature[°C] | -40...100 |
| Protection | IP 67; IP 69K |
