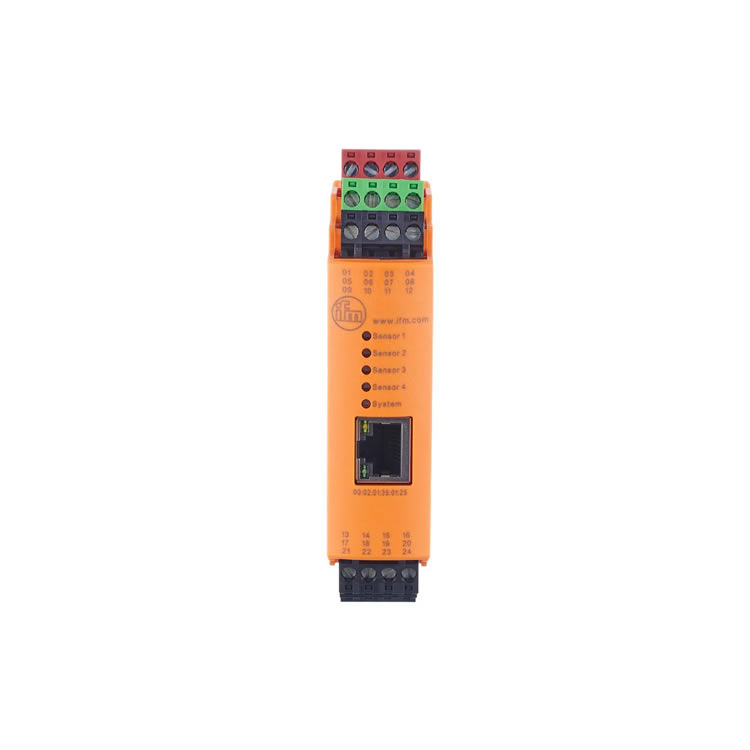

IFM VSE002 Vibration sensors
For the reliable vibration monitoring of machines and equipment
Condition-based maintenance thanks to monitoring of unbalance, rolling element bearing or gear state
Dynamic inputs for simultaneous detection of up to four vibration sensors
Two switching outputs for pre-alarm and main alarm
Two switching outputs for pre-alarm and main alarm
Analogue inputs for monitoring further physical measurands
Electrical data
| Operating voltage tolerance[%] | 20 |
| Operating voltage[V] | 24 DC |
| Current consumption[mA] | 200; ((24 V DC)) |
| Protection class | III |
Operating conditions
| Ambient temperature[°C] | 0...70 |
| Storage temperature[°C] | 0...70 |
| Protection | IP 20 |
