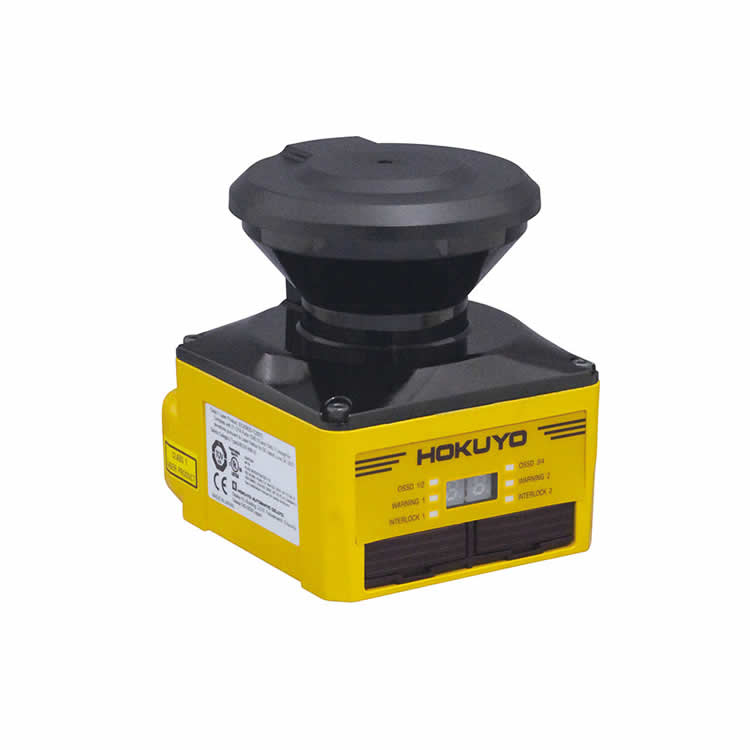

The UAM-05LPA safety laser scanner provides safeguarding and personnel protection in mobile and stationary applications. From monitoring robotic work cells to the travel paths of autonomous vehicles, it allows users to easily configure a simple or complex 5-meter safety zone with an expanded 30-meter warning area. Equipped with an Ethernet interface, area configuration, 2D measurement data and intensity output values can be captured in a 270° field-of-view and used for obstacle detection and localization on autonomous mobile robots (AMR) and automated guided vehicles and carts (AGV, AGC).
Applications:

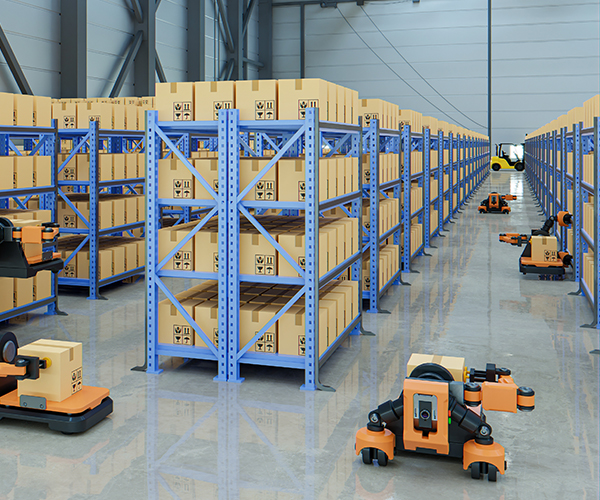

Industrial Vehicles (AGVs)
Distribution and Warehousing
Autonomous Mobile Robots (AMR)
Material Handling and Packaging
Automotive and Aerospace
Metal and Steel
Ports and Terminals
Semiconductor
User-friendly software for sensor configuration that provides 128 area patterns
Enhanced durability with improved environmental resistance and noise immunity
Easily integrated with safety PLCs / Controllers for mobile and stationary applications
As a next generation model, this safety scanner offers improved resistance to dust and light interference with higher accuracy for short-range detection and docking. With expanded digital I/O and a 4-encoder input function, AGV/AMR speed-dependent field switching becomes more flexible.
Other Models
UAM-05LPA (connector version)
