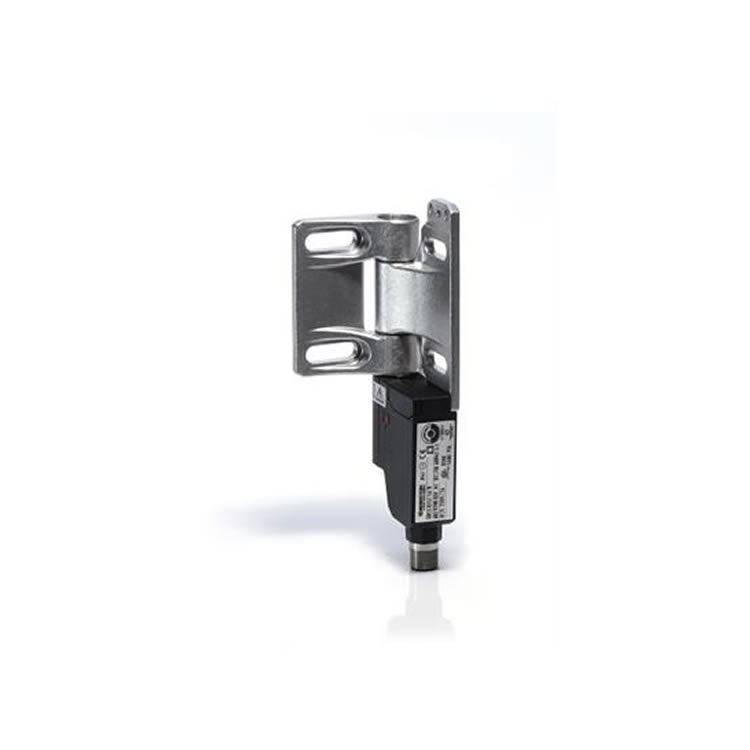

Bernstein SHS3Z-U15Z-SA R Hinge Switch
Product Description
Safe hinge switch, zinc die-cast, free selectable switch point, resettable, right stop, 6-pin M12 connector axial, 2xNC/1xNC
The SHS3Z hinge switch offers a lot of flexibility for installation, connection and adjustment. Since the hinge switch is integrated directly into the guard, it offers increased protection against manipulation. The SHS3 can be used on all doors, hoods and flaps and can be mounted on the right or left. The switching point of the safe hinge switch can be freely adjusted over the entire swivel range from 0° to 270°. An integrated fine adjustment screw allows the switching point to be readjusted by +/- 1.5°. Thanks to the replacement set supplied, the switching point adjustment can be repeated as often as required when the system is extended. Since a blank hinge with an identical design is also available, conventional load hinges can be dispensed with. • Safe, complete solution for hinged guard doors, includes hinge and safety switch • Thanks to IP67 protection for use in areas with heavy contamination • High protection against manipulation, as directly connected to the guard door • Load capacities up to 1200N • Switching point can be freely set from 0° to 270° and changed later • Easy mounting also on profiles • Easy adjustment via an integrated fine adjustment screw • Systems can be mounted on the right and left • Low maintenance • Zinc die-cast hinge with integrated safety switch in a Plastic enclosure
| Connection Type | M12 6 Pin |
| IP Rating | IP67 |
| Mounting | Right Side |
| Series | SHS3 |
| Contact Configuration | 1NO 2NC |
| Housing Material | Die Cast Zinc |
