120 kN Cordless Electro-hydraulic Compression Tool to Crimp Tubular Lugs, Al/Cu Lugs, Splices and other Connectors

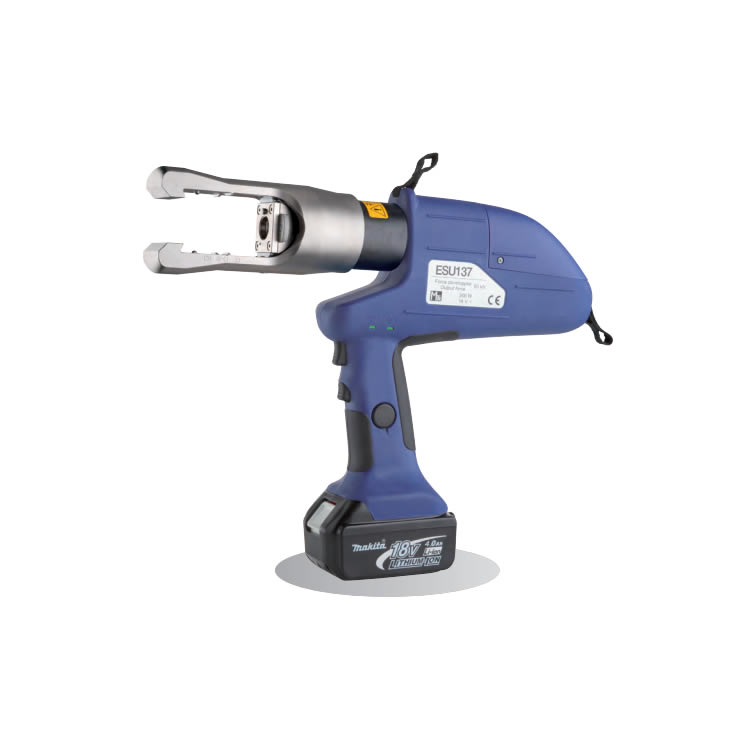

ESU137 electro-hydraulic compression tool
Output force: 120 kN
Stroke: 27 mm
Autonomy: - 50 to 100 indent crimping operations with battery 4.0 Ah
- 100 to 220 crimping operations with battery 4.0 Ah
Cycle time: 7 to 12 s depending
on the section
Dimensions: 400 x 310 x 72 mm
Weight: 5.9 kg (including the battery)
New features:
Electronic control of the cycle
Return programming according to the
user, either automatic or manual
Automatic or manual return stroke
Automatic stop at the end of the cycle
2-stage hydraulic pump with pilot-operated valve which increases efficiency between 20 and 40%
Return sound signal
New PC software for diagnosis and analysis of data
