50 kN Cordless Electro-hydraulic Compression Tool to Crimp Tubular Lugs, Splices and other Connectors.

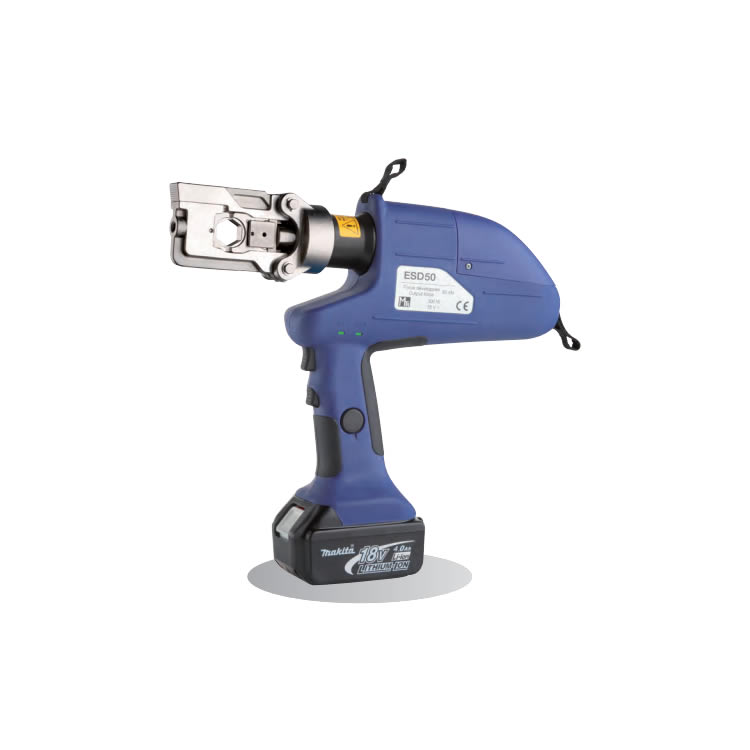

ESD50 electro-hydraulic compression tool
Output force: 50 kN
Stroke: 13 mm
Autonomy: 200 to 500 crimping operations with battery 4.0 Ah
Cycle time: 2 to 4 s depending on the section
Dimensions: 350 x 310 x 72 mm
Weight: 4.0 kg (including the battery)
New features:
Electronic control of the cycle
Return programming according to the user, either automatic or manual
Automatic or manual return stroke
Automatic stop at the end of the cycle
2-stage hydraulic pump with pilot-operated valve which increases efficiency between 20 and 40%
Return sound signal
New PC software for diagnosis and analysis of data
