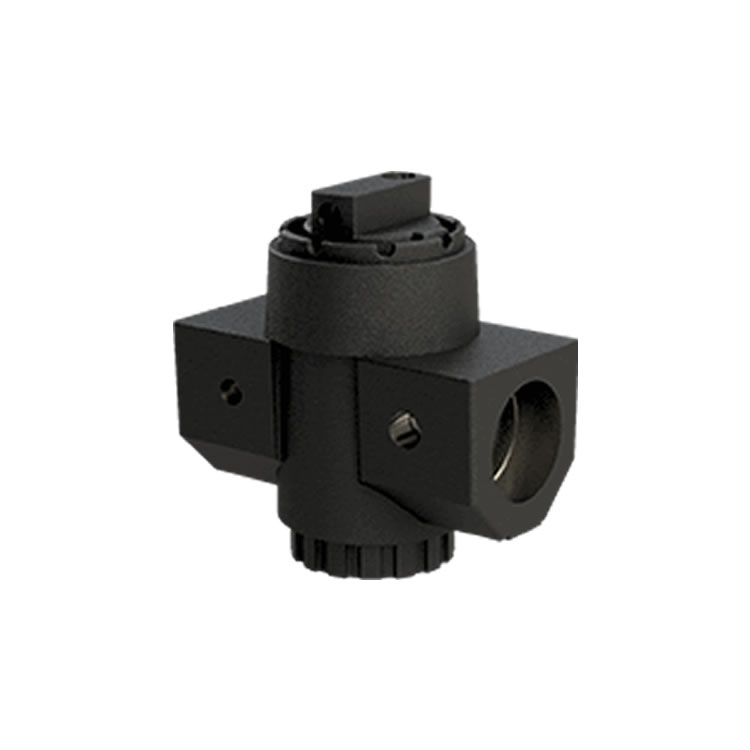

PSR pilot operated regulators handle most industrial shop air applications. The PSR is a cost effective air volume booster that converts an air pilot signal pressure into a high flow output pressure. This is a self-relieving regulator, so pressure can be controlled forward and reverse. The PSR pneumatic regulator is one of Proportion-Air’s most widely used pilot operated regulators and is a great match with the QB series of electronic pilot regulators.
Technical Specs
MAX Inlet Pressure 300 PSI (20.7 Bar)
P2 Pressure Range 0-200 PSI (13.8 Bar)
Operating Temps 0-175°F (-18-79°C)
Filtration 40 Micron
Port Size 1/4″ thru 1-1/2″
Relief Flow Capacity 19 SCFM Max (538 LPM)
Available Options NR | Non-Relieving
Available Options O2 | Oxygen Cleaned**(Size 2, 3, & 4 only)
Available Options EV | Viton Elastomers*
