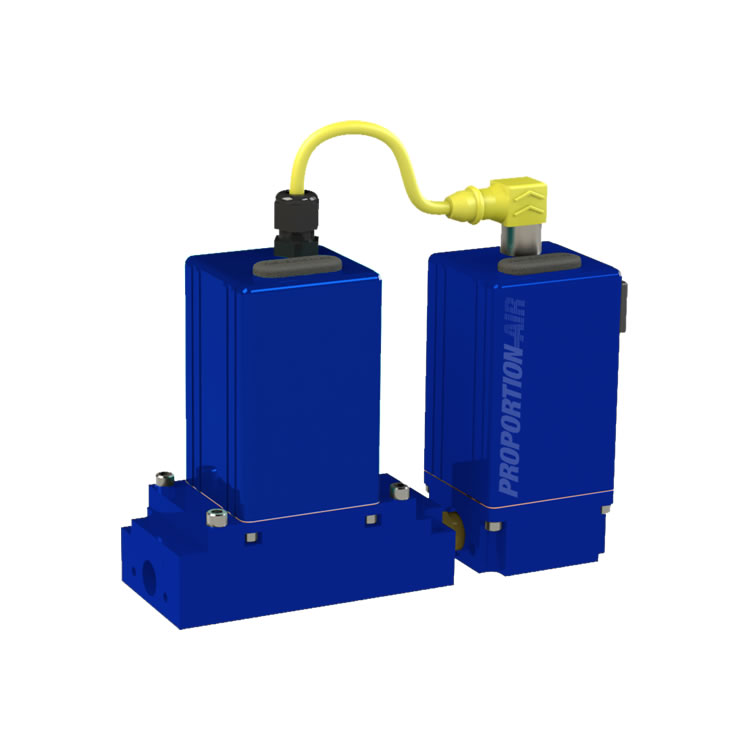

The FQPV2 mass flow controller uses a super fast analog PID to drive an electric current to a true proportional solenoid valve in order to vary the media flow rate. The mass flow of the media is quickly detected by the F-series mass flow transducer and the electric signal is provided to the PID control circuit. This high speed mass flow controller is a complete package consisting of a proportional flow control solenoid valve, mass flow transducer, and high speed PID control circuit to close the loop. All you need to provide is source air pressure, power and an electronic control signal.
Technical Specs
Max Inlet Pressure 150 PSI (10.34 Bar)
Accuracy ±4% F.S.
Repeatability ±0.25% F.S.
Lowest Control Flow 4 to 40 SCFH (1.89-18.9 LPM)
Port Size 1/8″ NPT (BSPP Available)
Durability Immune to shock & vibration (up to 20 Gs)
Ambient Temps 32-158°F (0-70°C)
Media Temps 32-122°F (0-50°C)
Turn-Down Ratio 10:1 (inquire about 20:1)
Filtration 40 Micron
Power Requirement 17-24 VDC
