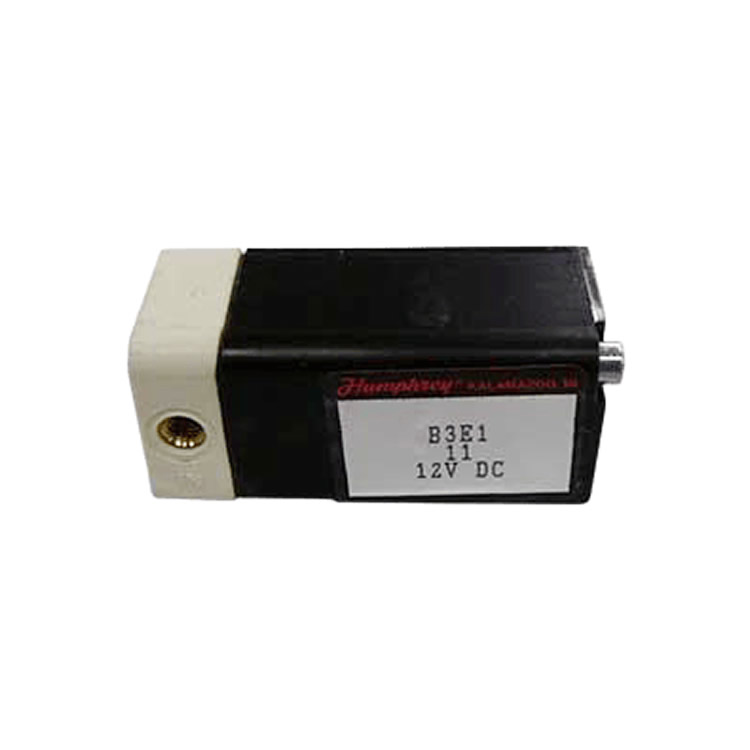

The B3E1 solenoid valve features 10-32 UNF threads and a 1/32" orifice.
The direct-acting solenoid valve is compact and has extremely low wattage.
It operates across a wide temperature range from 0°F to 150°F.
It is highly suitable for battery-powered, microprocessor-controlled, and printed circuit board-type applications.
Lubrication is not required.
It is available in 2-way or 3-way models.
Electrical connection options include standard spade terminals, 18-inch leads, or DIN-type connections.
The Mini-Mizer valves offer various mounting options, including robust extruded aluminum MTL and DMTL series manifolds, as well as plastic MZ1 and DMZ1 series manifolds.
For use with air or other gases.
