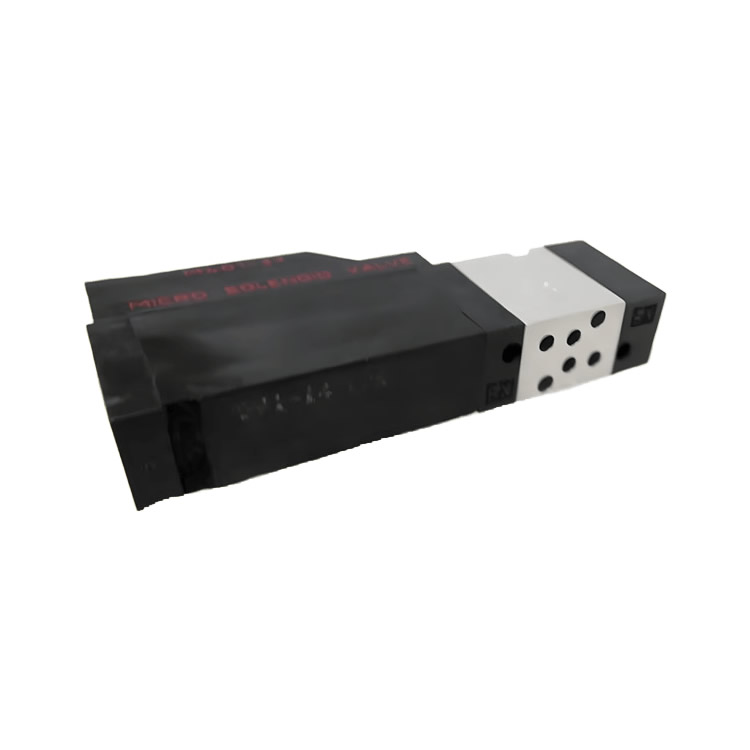

Core Product Features
Basic Parameters
• Voltage: 12VDC, supporting a wide voltage range (±10% to -15%), with power consumption of approximately 4.5W, suitable for low-power industrial applications.
• Pressure Range: 0-125 PSI (approximately 0-8.6 Bar), suitable for medium- and low-pressure pneumatic systems.
• Flow Performance: Typical flow coefficient Cv=0.17, ideal for precise control of small flow rates.
• Response Time: ≤12ms, enabling high-frequency operation (up to 600 cycles per minute), meeting the demands for rapid start-stop functionality.
Structure and Materials
• Valve Body Materials: Anodized aluminum, brass, stainless steel, and nitrile rubber seals, offering corrosion resistance and lubrication-free operation.
• Port Standards: 1/8 NPSF female threaded ports, supporting inline piping installation.
• Protection Design: Compliant with RoHS standards, adaptable to a temperature range of 32~125°F (0~52℃).
Functional Types
• Operating Modes: Single solenoid valve actuation, 2-position 3-way (3 ports, 2 positions), supporting normally closed (NC), normally open (NO), or switching functions.
• Electrical Connections: Standard 24-inch lead wires, with optional 72-inch leads, supporting DIN connectors or conduit fittings.
