AWH tested safety valves ensure safe and reliable protection against excessive pressure in pipe systems and containers. The safety valves respond immediately if the maximum pressure is exceeded, thus relieving the production system. The safety valves are suitable for use in almost every sector: from the food and pharmaceutical industries to the chemical industry.
AWH valves are extremely reliable, impress with their first-class quality and guarantee maximum safety for your piping systems.
Compare articles

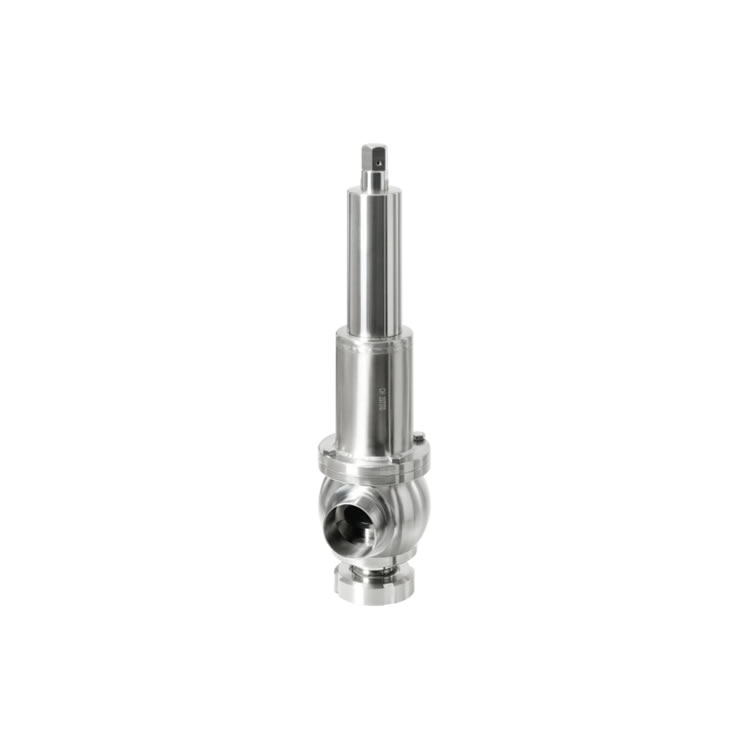

| Title | Safety Valve Liner/Male Standard 25 1.4404 EPDM |
|---|---|
| Article no. | 4752050100 |
| Image | .webp?t=1767727639 "Safety Valve Liner/Male Standard 25 1.4404 EPDM") |
| Indication | The weight specifications are guidelines. They vary according to pressure and different springs. |
| Indication Picture | Similar to illustration |
| nominal width system | DIN |
| standard | DIN 11851 |
| Version A | standard |
| B1 | 93.5 |
| d0 | 24 |
| D1 | 26 |
| D5 | 50 |
| E | Rd 52x1/6" |
| E1 | Rd 78x1/6" |
| H | 441 |
| H1 | 76 |
| Ra inside | 0.8 |
| external surface | metal bright / finely finished |
| material I | 1.4404 |
| material II | EPDM |
| nominal size I | 25 |
| weight | 8.2 |
| Minimum order | 0 |
