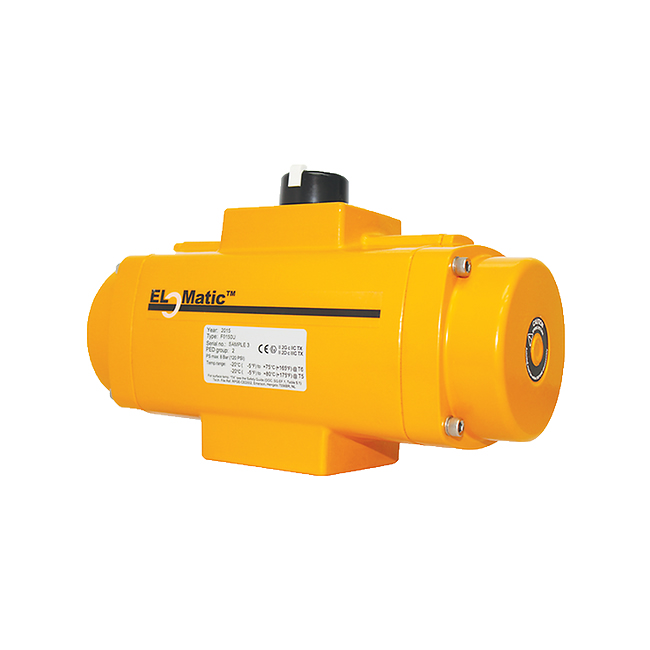

EL-O-Matic FS0065.NM40CWALS.YD14SNA.00XX Pneumatic Valve Actuator
The EL-O-Matic F-series is a rack & pinion actuator, available in 13 sizes as spring return or double acting models. The actuator's “Fit & Forget“ design provides the optimum performance for a wide range of quarter turn valve applications. The EL-O-matic F-series are powder coated and comes with a special high corrosion resistant aluminum pinion design and stainless steel fasteners, resulting in a long lasting durable actuator design.
With single and double acting Actuators in 13 sizes, ranging from 12 Nm to 4100 Nm (106 to 36,474 lbf.in).
Fit and Forget robust, corrosion resistance design.
Easy to install actuator which functions faithfully giving many years of dependable performance.
The hard anodized high grade aluminum (7075 T6) pinion, provides the best combination of corrosion resistance, high strength and a lightweight construction as well as providing protection against galvanic corrosion.
Modular construction allows easy spring or action changes.
Dual valve flange drilling patterns and interchangeable drive inserts allows for direct mounting capability and reduces the need for valve mounting kits.
Compliance to NAMUR interface standard allows the actuator to be packaged with a wide range of accessories.
Dual Stroke Adjustment allows easy setting of the valve stroke which prevents premature valve failures.
Construction with standard components for delivery in a variety of frequently used configurations.
