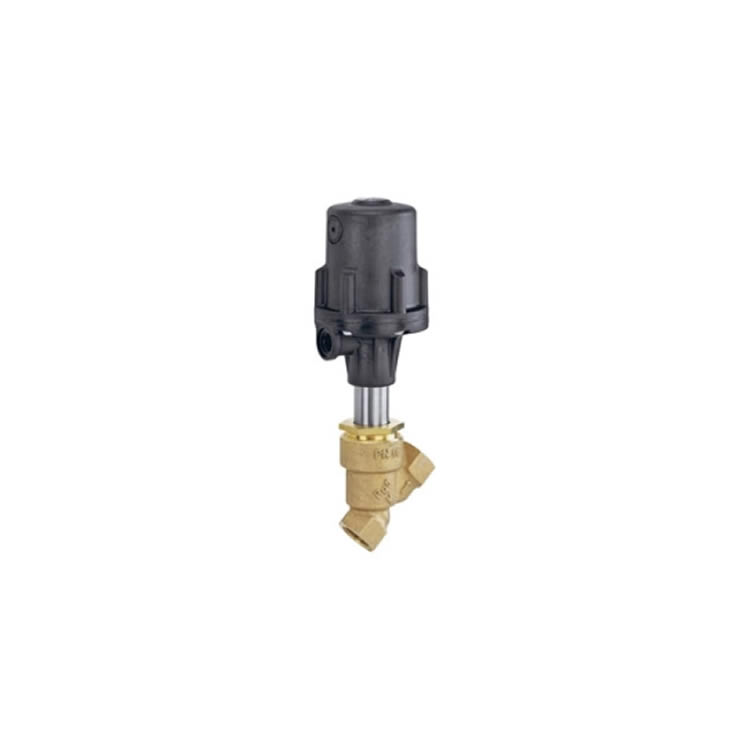

Gemu 554 80D 1 9 51 2 Angle seat globe valve
Structural design
Valve body type: Angle Seat, inlet and outlet are at a 90° right angle, saving space and optimizing flow.
Sealing material:
Size and connection
Nominal diameter (DN): 80 ("80" in the model means DN80, i.e. 3-inch interface).
Connection method: flange connection (standards such as EN 1092-1 or ANSI B16.5).
Drive method
Actuator:
Pneumatic drive
Optional manual or electric actuator
Technical parameters
Pressure level: PN16/PN40
Flow characteristics: linear or equal percentage (suitable for precise regulation).
Media compatibility: water, steam, corrosive liquids, gases, etc.
Application scenarios
Industrial fields: chemical, pharmaceutical, food and beverage (sanitary design optional), energy.
Typical uses:
Steam system flow control.
Cutoff and regulation of high viscosity or particle-containing media.
Quick opening and closing in automated processes (short response time for pneumatic versions).
Features
Available as shut off or control valve
Low actuator weight due to plastic body
Faster actuator replacement and free actuator positioning due to fixing via union nut
Standard actuator can be replaced with 550 or 514 on request
Suitable for vacuum up to 20 mbar (a)
Particularly compact design, actuator size B
