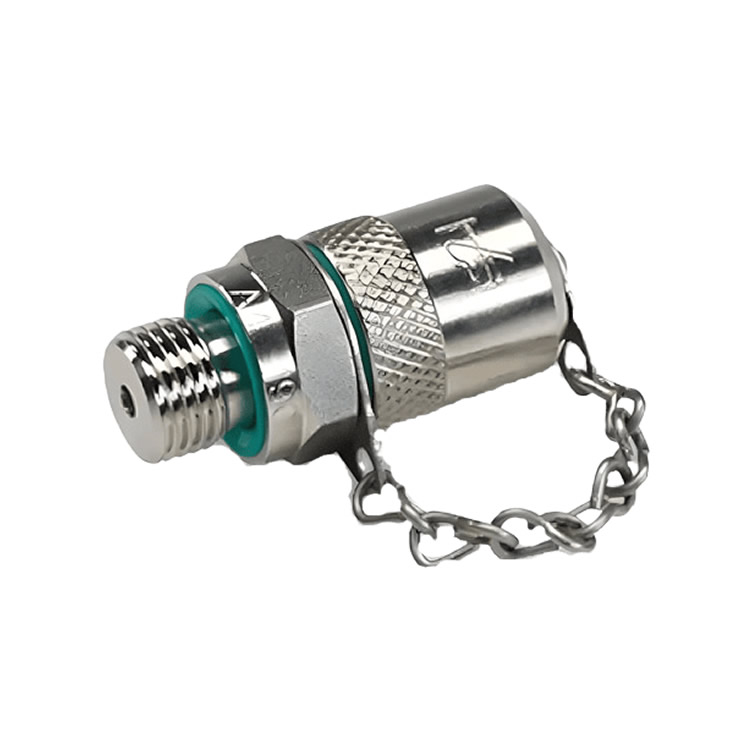

Hydrotechnik Test Connector 2103-01-18.00
It can be easily connected or disconnected from the measuring hose by hand even under high pressure.
Easy connection to instruments.
Compact structure.
High operating pressure.
Material of HYDAC Pressure Test Connectors:
Metal parts: Carbon steel or stainless steel 316TI.
Seals: Carbon steel connectors with rubber NBR (-25°C to +90°C). Stainless steel connectors with fluororubber FPM (-20°C to +200°C).
Scope of Application: Suitable for hydraulic or other mineral oil systems.
Operating Pressure: Up to 63 MPa, in accordance with ISO 15171-2 standard.
Material: The connecting body is made of steel, and the metal cap is made of steel 1.0718. Note: If special requirements are specified, otherwise, the material will be cutting steel 1.0718.
Pressure Test Connector Seal: Internal seals are made of NBR (nitrile rubber), with fluororubber as an option.
Thread for Tightening: Available in various forms.
Temperature Range of Hydrotechnik Pressure Test Connectors:
Metal Cap: NBR (nitrile rubber) seal: -30°C to +120°C; FKM (fluororubber) seal: -20°C to +200°C.
Plastic Cap: -20°C to +100°C (for both seal materials).
(2) Connector Configuration:
Sensor End: M12×1 male connector (4-pin, A-coded, IP67 protection rating).
Device End: Open wire tail (can be connected to a junction box or PLC module).
Length: 2.5 meters (standard model, customizable from 1 to 50 meters).
Outer Diameter: Approximately 5.5mm (flexible design, minimum bending radius of 50mm).
Protection Rating: IP67 (submersible up to 1 meter/immersion-resistant for 30 minutes).
Chemical Resistance: Resistant to hydraulic oil, coolant, weak acids, and weak bases.
