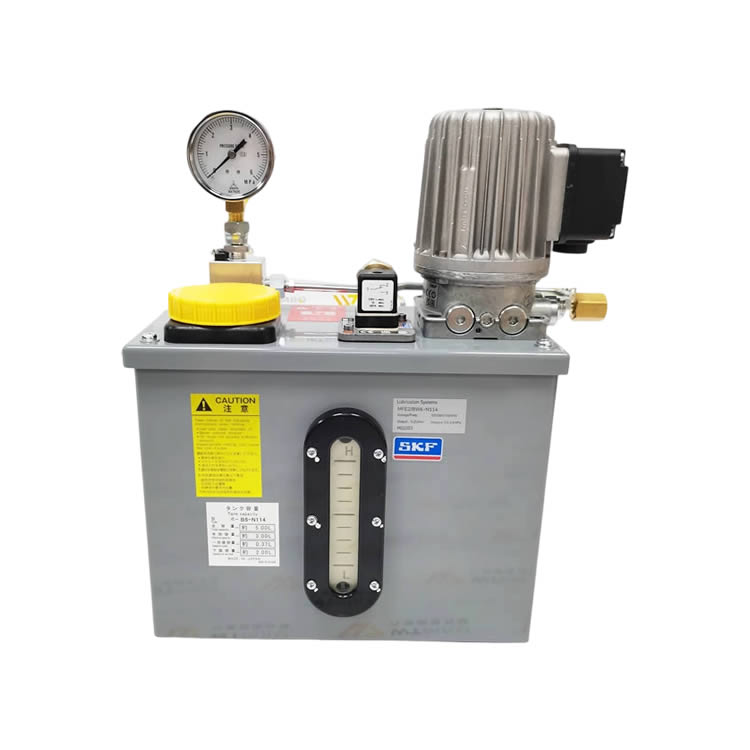

SKF MFE2/BW6-N114 Single-Line Gear Lubrication Pump (formerly Vogel MFE Series)
Brand: SKF (formerly Vogel)
Model: MFE2/BW6-N114
Model Number Breakdown
MFE2: MFE series second-generation gear pump unit, suitable for flowable grease, single-line centralized lubrication system
BW6: 6L plastic reservoir, equipped with dual float level switches (pre-warning + minimum level alarm)
N114: Three-phase motor configuration, integrated main line automatic pressure relief valve, with pressure gauge port
Specifications
| Item | Specification |
|---|---|
| Lubrication Media | Mineral oil, synthetic oil, NLGI 000 / 00 flowable grease |
| Viscosity Range | 20 to 850 mm²/s |
| Operating Pressure | Max. 17.5 bar, integrated pressure relief valve + vent valve |
| Output | 0.12 to 0.5 L/min |
| Reservoir Capacity | 6L plastic reservoir |
| Mounting | Vertical mounting |
| Protection Rating | IP65 |
| Level Monitoring | Dual float switches, pre-warning + low level shutdown alarm |
| Ambient Temperature | 10°C to 40°C |
| Media Oil Temperature | 10 to 65°C |
| Output Port | Single outlet, for single-line MonoFlex centralized lubrication system |
Features
Former German Vogel product line, now under SKF, designed for single-line centralized lubrication systems, intermittent operation with single-line distributors. Integrated pressure relief valve and vent valve automatically relieve line pressure and exhaust accumulated air, reducing air lock faults. 6L transparent plastic reservoir for visual oil level observation, with dual level monitoring for early low-level warning to prevent dry pump damage. Three-phase drive motor, stable operation, suitable for long-term continuous operation of machine tools and automated production lines. Modular structure; reservoir, pump head, pressure gauge and level switch can all be individually disassembled for maintenance, with strong parts commonality. Single-line oil output drives single-line distributors for quantitative delivery of oil or flowable grease to multiple lubrication points.
Applications
Machine tools, automated production lines, single-line centralized lubrication systems, industrial equipment requiring reliable oil or flowable grease supply.
