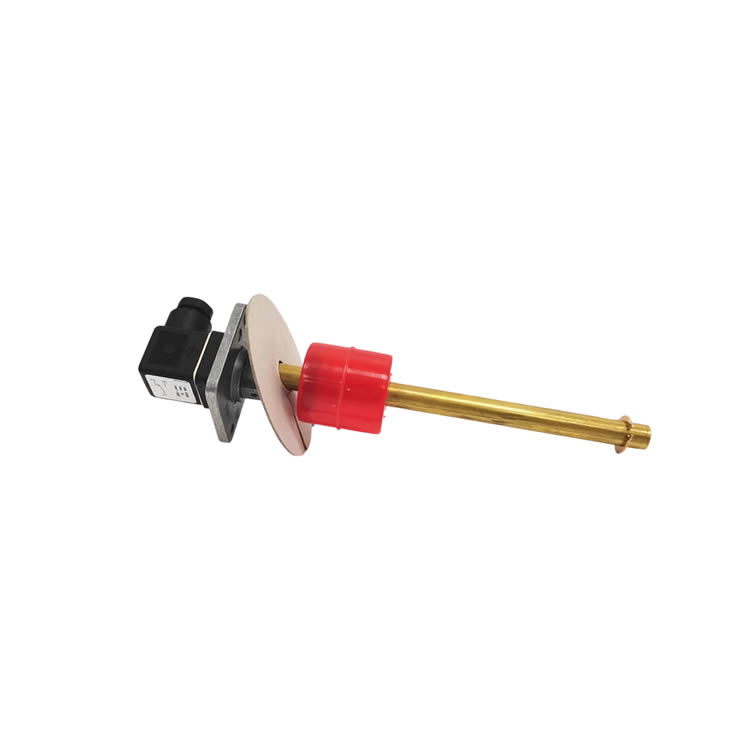

SKF (Vogel) WS32-2/195 Float Level Switch
Brand: SKF
Model: WS32-2/195
Model Number Breakdown
WS32: Float level switch series
2: 1 changeover contact (SPDT, one open one closed)
/195: Probe rod length 195mm
| Item | Specification |
|---|---|
| Product Type | Float level switch (for low level monitoring of grease/oil reservoirs) |
| Contact Type | Single pole double throw (SPDT) changeover contact |
| Mounting | Vertical mounting |
| Media | Mineral oil, synthetic lubricating oil, max. viscosity 1500 mm²/s |
| Media Temperature | -10°C to +80°C |
| Protection Rating | IP65 (with DIN rectangular plug) |
| Material - Flange | Aluminum alloy |
| Material - Probe Rod | Copper-zinc alloy |
| Material - Float | PP polypropylene |
| Material - Seal | NBR nitrile rubber |
| Switch Function | Minimum level alarm (oil shortage alarm) |
| Electrical Connection | DIN EN 175301-803-A rectangular plug |
Features
Designed for centralized lubrication system reservoirs, monitors minimum oil level and triggers alarm when oil is low, protecting the lubrication pump. Float rises and falls with oil level, internal hermetic reed contacts provide reliable operation and resistance to oil contamination. Probe rod length 195mm, suitable for corresponding reservoir depth; vertical flange mounting. NBR seals resist mineral oil, IP65 protection, suitable for machine tool and automation equipment lubrication stations. Single changeover contact, can be connected to PLC or alarm indicator.
