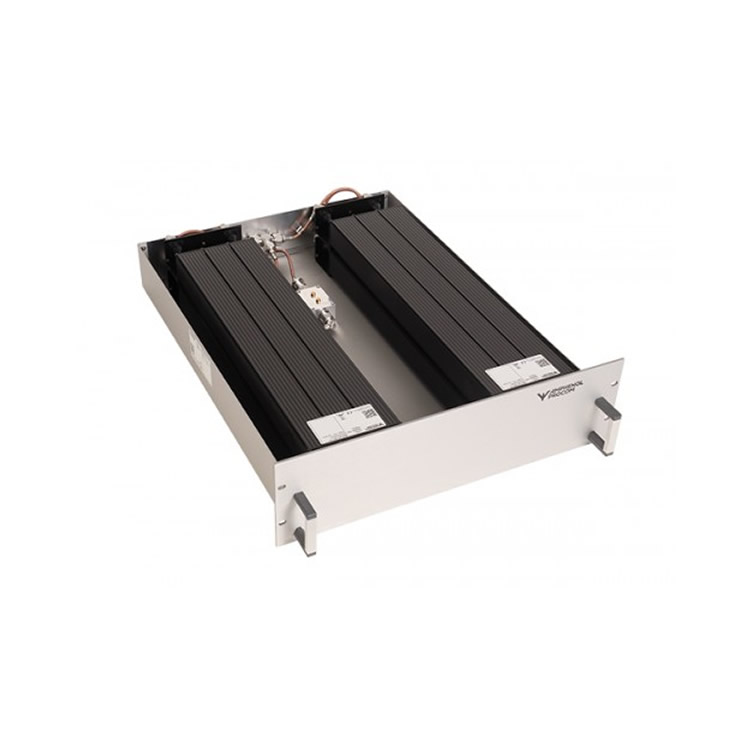

Model: DPBP 2/66-150 LL/1-7.5-1/LPF
Frequency:
Rx: 139.5 - 140.5 MHz
Tx: 148 - 149 MHz
Max. Input Power: 150 W
Spacing (Tx-Rx): 7.5 MHz or 10 MHz
Isolation (Tx - Rx): > 70 dB
Isolation (Rx - Tx): > 70 dB
Insertion Loss: ≤ 1.7 dB
Impedance: 50 Ω
Reject Attenuation: > 50 dB @ 3rd & 5th harmonic
VSWR: < 1.3:1 (>18 dB return loss)
Bandwidth (Tx and Rx): 1 MHz
