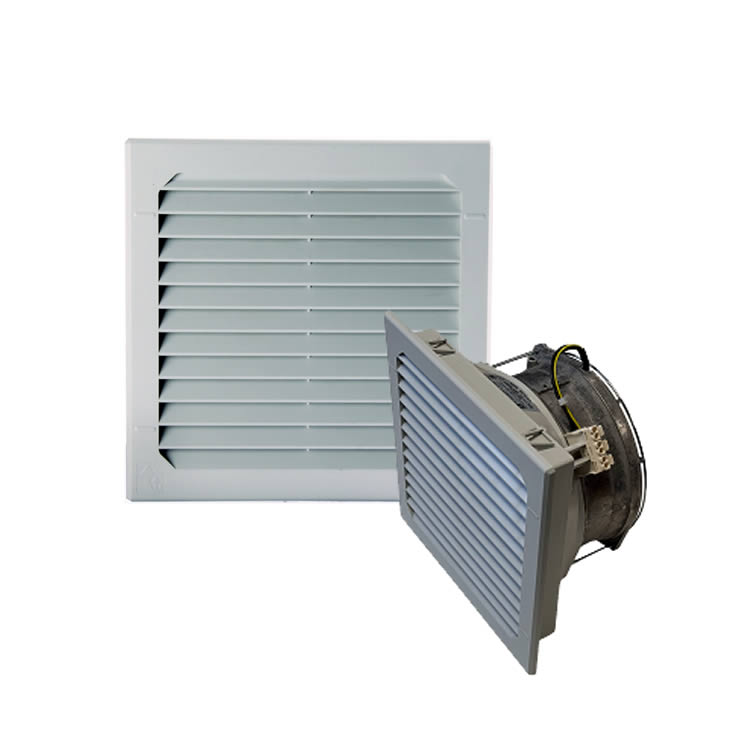

LV310 is a high‑performance filter fan from Rübsamen & Herr, used for forced ventilation and temperature regulation of control cabinets, equipped with replaceable filter mat to prevent dust ingress and ensure stable heat dissipation for internal electrical components.
Control cabinet and enclosure ventilation
Free‑blowing air flow rate: 182 m³/h
Air flow rate with outlet filter: 135 m³/h
Cut‑out dimension for mounting: 177 x 177 mm
External dimensions: 204 x 204 mm
Installation depth: 90 mm
Filter mat: P15/350S
Supplied complete with filter mat and seal
Matching outlet filter: GV 300
Various filter mats for dust filtration
LV series with low‑profile design and quick‑fit mounting
Also available in EMC‑compliant version
Special colours available upon request
