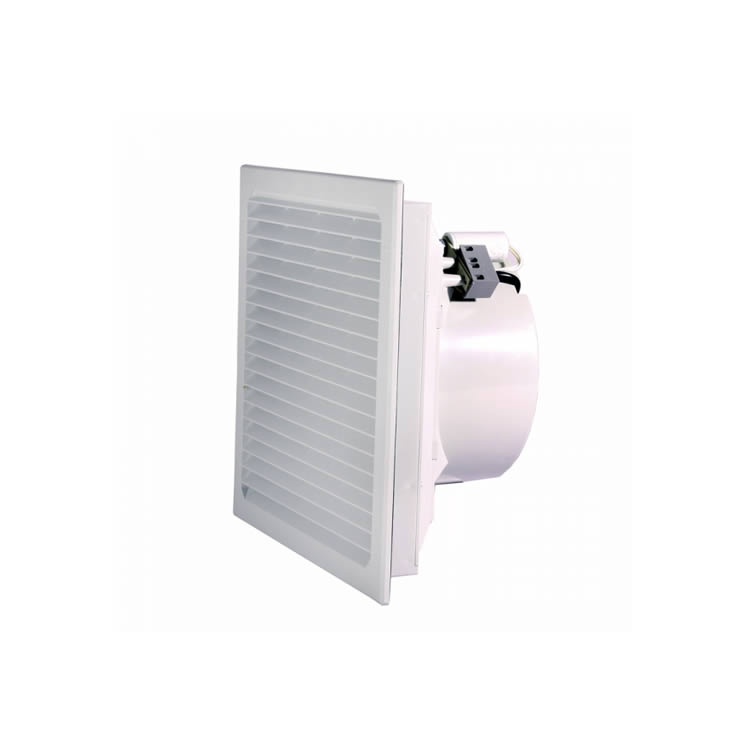

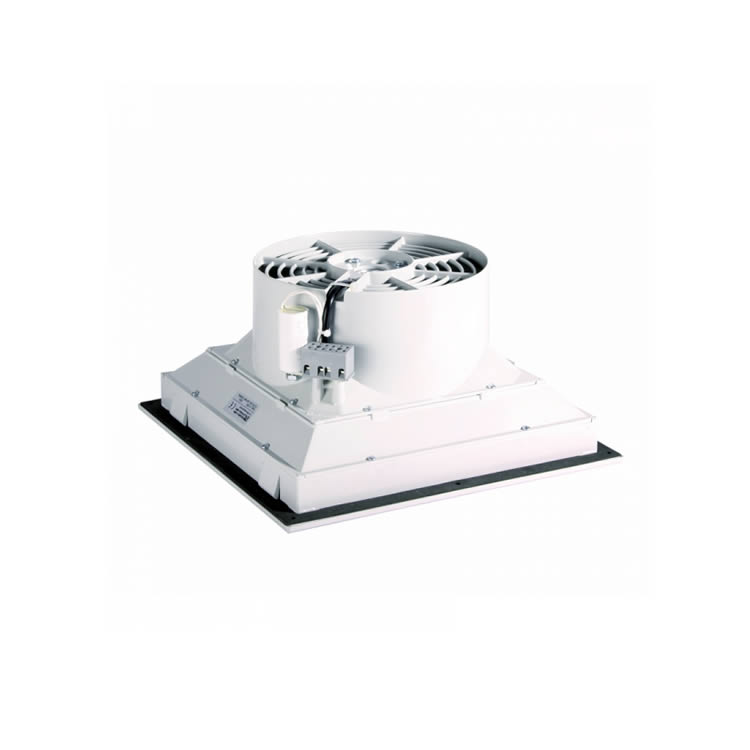

Rubsamen & Herr Filter fan LV 605
LV605 is a flat‑design reversible filter fan manufactured by Rübsamen & Herr, outer dimension 323 mm × 323 mm, cut‑out size 292×292 mm, standard IP54 protection class with built‑in G3 filter mat. Its maximum free‑blowing airflow reaches 470 m³/h, 365 m³/h when fitted with exhaust filter, featuring snap‑in quick‑mounting structure, it supplies dust‑filtered cooling air for large‑size control cabinets, and IP55 upgrade is available optionally with F5 Z‑Line filter for dusty harsh‑environment applications.
Control cabinet and enclosure ventilation
Free‑blowing air flow rate: 470 m³/h
Air flow rate with outlet filter: 365 m³/h
Mounting cut‑out: 292 x 292 mm
External dimensions: 323 x 323 mm
Installation depth: 158.5 mm
Filter mat: P15/350S
Supplied complete with filter mat and seal
Matching outlet filter: GV 600/700
Various filter mats for dust filtration
LV series with low‑profile design and quick‑fit mounting
Also available in EMC‑shielded version
Special colours available upon request
