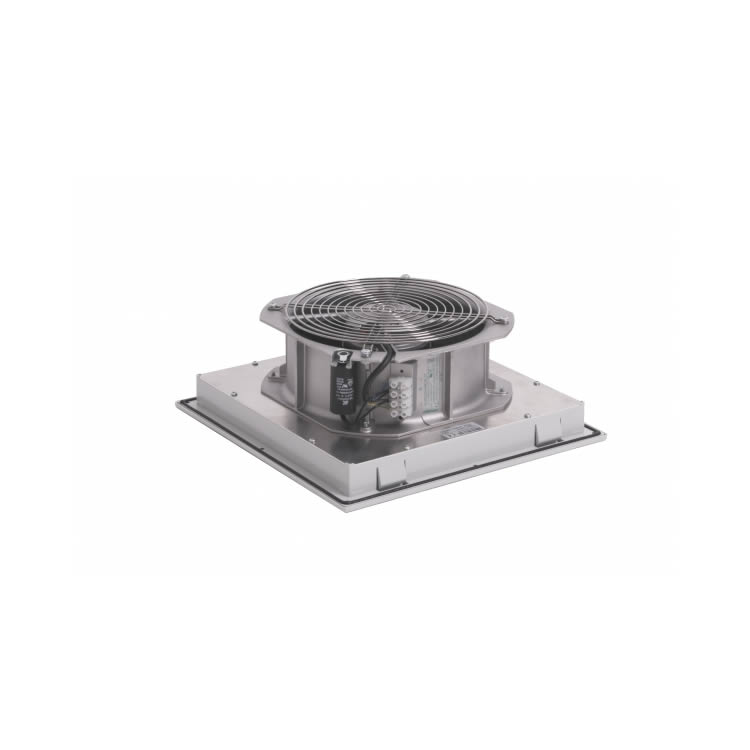

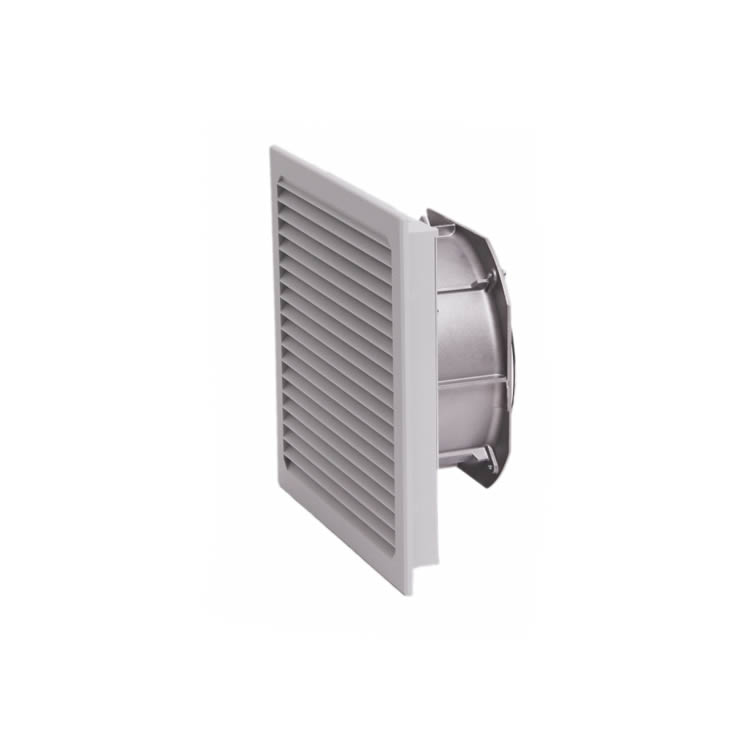

LV610 is a large‑size cabinet filter fan manufactured by Rübsamen & Herr, delivering strong airflow up to 465 m³/h, with quick‑clip installation and replaceable filter mat. It dissipates accumulated heat inside enclosures while blocking dust contaminants, offering reliable thermal management for heavy‑duty automation and electrical equipment.
Cabinet and Enclosure Ventilation
Free‑blowing air flow: 465 m³/h
Air flow with outlet filter: 325 m³/h
Cut‑out dimension for mounting: 292 x 292 mm
External dimensions: 323 x 323 mm
Installation depth: 121.5 mm
Filter mat: P15/350S
Supplied complete with filter mat and seal
Matching outlet filter: GV 600/700
Various filter mats for dust filtration
LV series with low‑profile design and quick‑fastening mechanism
Also available in EMC‑shielded version
Special colours available upon request
