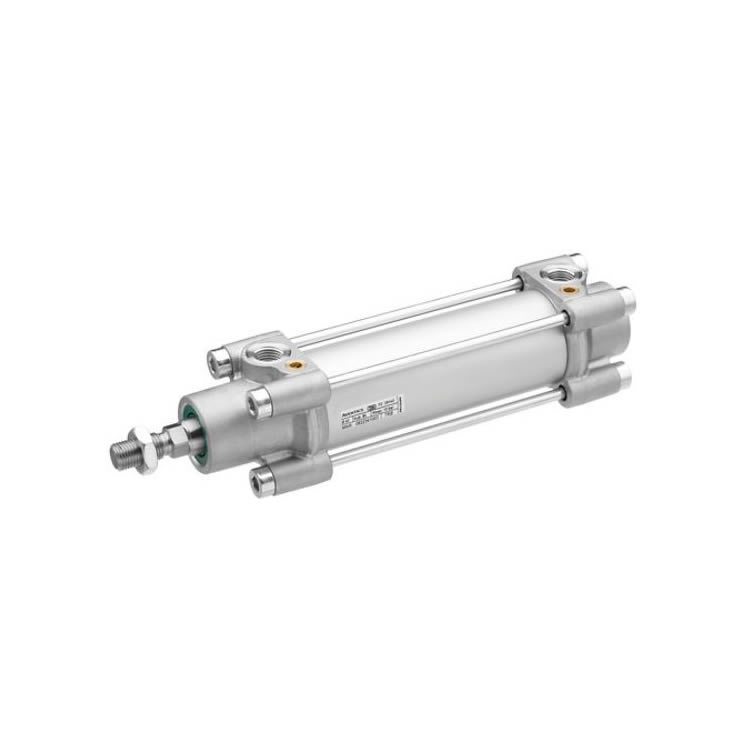

Aventics R480605355 Rod Cylinder
Specifications
Standard: ISO 15552
Piston diameter: 125 mm
Stroke: 250 mm
Operating principle: Double acting
Cushioning: Pneumatically adjustable cushioning
Magnetic piston: Piston with magnet
Environmental requirements: Industry standard, heat-resistant
Piston rod: Single rod
Scraper: Heat-resistant scraper
Piston force measurement pressure: 6.3 bar
Retract piston force: 7220 N
Extend piston force: 7725 N
Minimum ambient temperature: -10 °C
Maximum ambient temperature: -10 °C ambient temperature 120 °C
Minimum operating pressure: 1.5 bar
Maximum operating pressure: 10 bar
Connection: G 1/2
Piston rod thread: M27x2
Cushioning length: 22 mm
Cushioning energy: 140 J
Weight 0 mm stroke: 6.92 kg
Weight +10 mm stroke: 0.21 kg
Maximum stroke: 2750 mm
Medium: Compressed air
Minimum medium temperature: -10 °C
Features
Available in piston diameters from 32 mm to 125 mm
Advanced pneumatic cushioning
Additional elastic cushioning
Wide range of scraper modules available
With the modular system you can change the scraper on the cylinder at any time and considerably decrease service intervals
Wide range of variants and accessories available in the configurator
