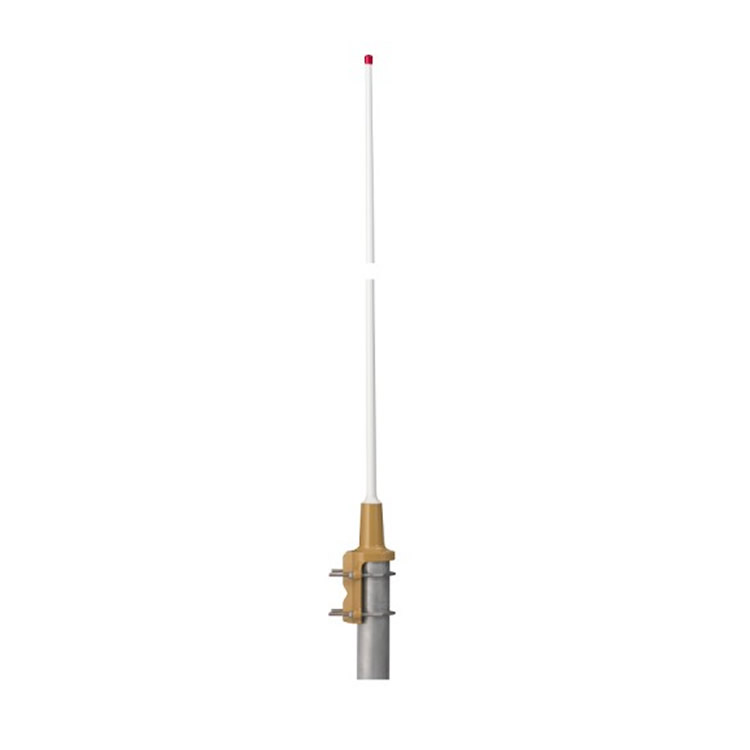

Model: CXL 2-1LW/S
Frequency: 139 - 147 MHz
Antenna Type: Coaxial dipole, broadband
Maximum Input Power: 150 W
Polarization: Vertical
3 dB Beamwidth, E-plane: 80°
3 dB Beamwidth, H-plane: Omnidirectional
Impedance: 50 Ω
Gain: 0 dBd (2.2 dBi)
VSWR:
CXL 2-1LW/s: 138 - 156 MHz ≤ 1.5
CXL 2-1LW/l: 146 - 163 MHz ≤ 1.5 and 146 - 165 MHz ≤ 1.75
CXL 2-1LW/h: 156 - 174 MHz ≤ 1.5 and 155 - 175 MHz ≤ 1.75
Bandwidth: 18 - 21 MHz (provided according to model)
Electrostatic Discharge (ESD) Protection: All metal parts are DC-grounded (connector shows DC short-circuit)
HCM Code: HCM000ND00, 040DE00
