Festo DSM-25-270-P1-A-B Semi-rotary driver-Instrumentation-Effsen Automation

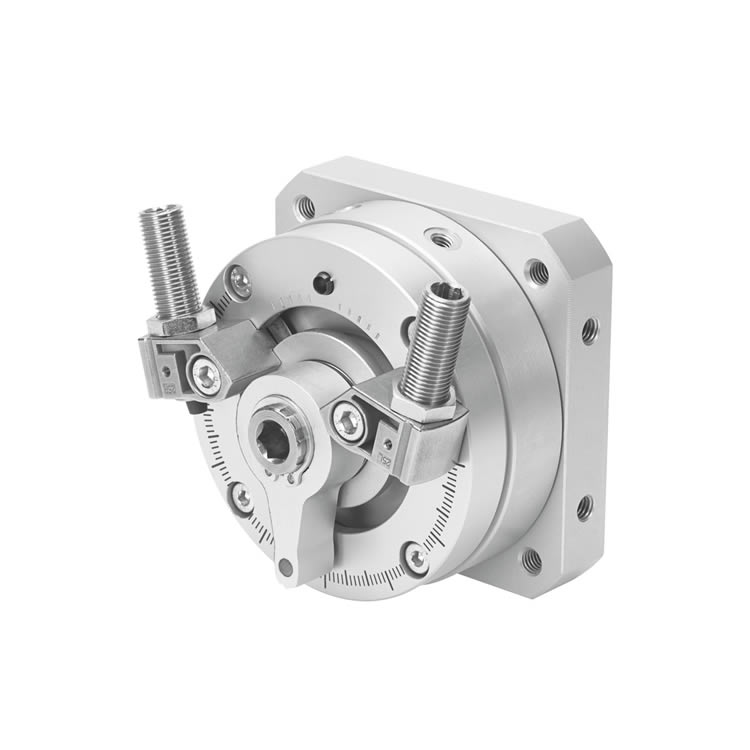

Festo DSM-25-270-P1-A-B Semi-rotary driver

Date: 2025-05-26

Models: DSM-25-270-P1-A-B

Price: Phone or Email Inquiry

Do you have any questions about this product? Please contact our customer service by phone number +852 30623028 Or Quick Inquiry Form.

Product Overview

Festo DSM-25-270-P1-A-B Semi-rotary driver

Technical data

Size: 25

Buffer angle: 7.5 degrees

Adjustment range of rotation angle: 0 degrees ... 246 degrees

Swing angle: 0 degrees ... 246 degrees

Buffer: Elastic buffer ring/pad with fixed stops at both ends

Mounting position: Optional

Fine adjustment: -6 degrees

Operating mode: Double acting

Design: Vane-type

Position detection: Via proximity switch

Product weight: 715 g

Mounting method: Via internal thread

Pneumatic interface: M5

Drive shaft material: Steel, nickel-plated

Seal material: TPE-U (PU)

Housing material: Refined aluminum alloy
