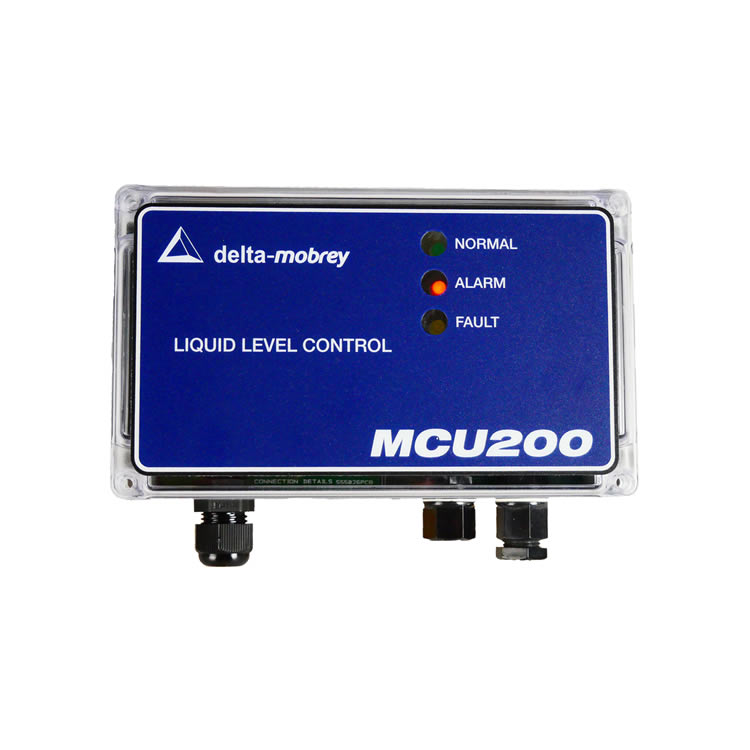

Mobrey MCU201 Controller
The MCU controller and gap sensor when used together provide an ultrasonic point level liquid switch. Typical applications include sludge blanket level detection in settlement tanks, interface detection for immiscible liquids and contamination detection, such as oil in water or water in oil. The MCU201 and MCU203 control units provide simple and economical control electronics for wall-mounting near a tank or pipeline containing a single ultrasonic gap sensor. The sensors operate on the attenuation of an ultrasonic signal through the fluid.
Features & Benefits
Wall-mounting IP65 polycarbonate enclosure
DPDT relay output for wet-to-dry or dry-to-wet changeover indication, external control, or alarm condition indication.
Accepts a voltage-free contact input e.g. to actuate a pump control function via the output DPDT relay
Three LED indicators – Normal, Alarm, and Fault
Selectable time delay (0.5, 2, 8 or 30 seconds) for wet-to-dry or dry-to-wet changeover
Continuous cable check between controller and Mobrey 400SD Point Level Detector
Choice of sensors for use in tanks and pipelines
