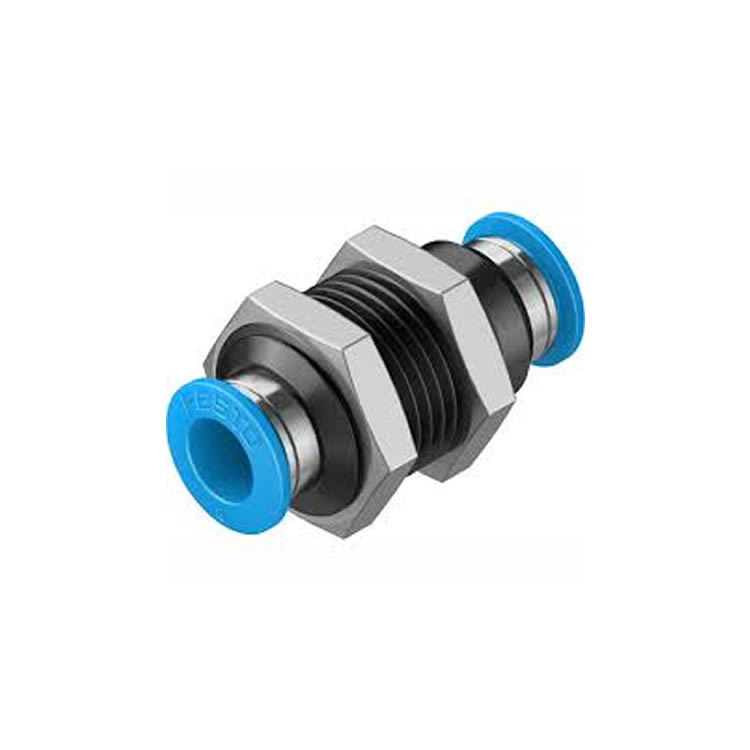

Festo QSS-8 Tube Connector
Product Type: Push-in Tube Fittings Connector), used for quick connection of plastic tubes/nylon tubes in pneumatic systems
Standard connection solution for 8mm outer diameter air pipes
Connection specifications:
Applicable pipe diameter: 8mm (tolerance range ±0.3mm)
Interface thread: M5/M7 and other metric threads (specific models need to be confirmed)
Maximum working pressure: 10bar (standard type)
Innovative design:
One-hand operation: push-type release ring design, can be disassembled and assembled without tools
Double seal:
Front O-ring (NBR material) ensures airtightness
Built-in check teeth prevent accidental loosening of air pipes
360° rotation: avoid air pipe distortion and extend service life
Material structure:
Main material: POM engineering plastic (wear-resistant and impact-resistant)
Seal: high-quality NBR rubber (oil-resistant and aging-resistant)
Metal parts: stainless steel spring (corrosion-resistant)
Performance parameters:
Temperature range: -20℃～+60℃ (standard type)
Protection level: IP40 (used in control cabinet)
Flow characteristics: optimized flow channel design, pressure drop <0.1bar@6L/min
