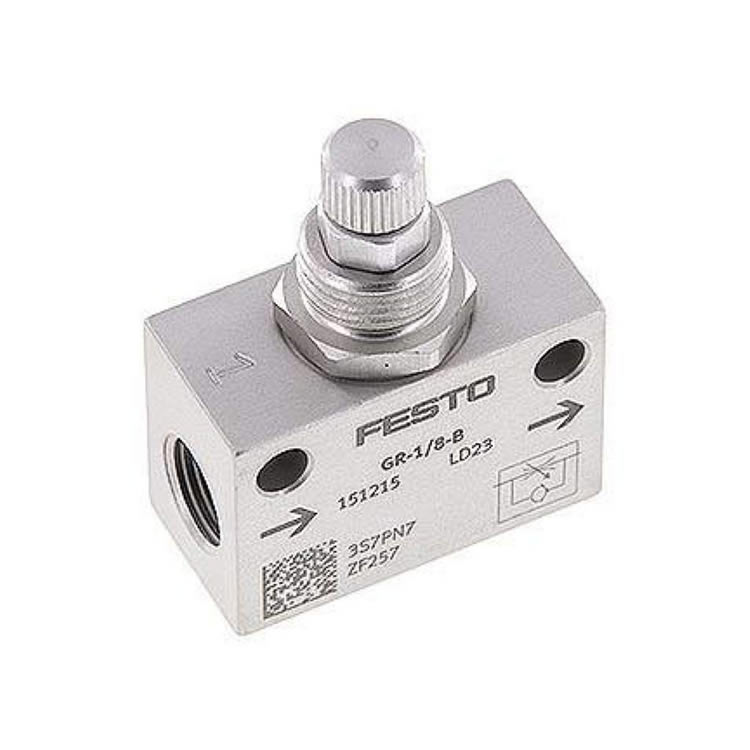

Festo GR-1/8-B One-Way Flow Control
Valve function: Blowback function
Pneumatic connection 1: G1/8
Pneumatic connection 2: G1/8
Adjusting element: Knurled screw
Type of fastening: Integrated in the front panel
With through-hole
Optional:
Normal nominal flow rate in non-return throttle direction [l/min] 210.0
Normal nominal flow rate in non-return direction [l/min] 180 to 275
Operating pressure [bar] 0.5 to 10
Ambient temperature [°C] -20 to 60
Housing material: Forged aluminum alloy
Mounting position: Any
Operating medium: Compressed air in accordance with ISO 8573-1:2010 [7:4:4]
Information on operating and control medium: Oil-immersed operation possible (required for subsequent operation)
Medium temperature [°C] -20 to 60
Nominal width [mm] 3
Product weight [g] 31.0
Material information: RoHs compliant
Seal material: Nitrile rubber
Sleeve material: Polyoxymethylene
Adjusting screw material: High alloy steel
Nut material: Forged aluminum alloy
