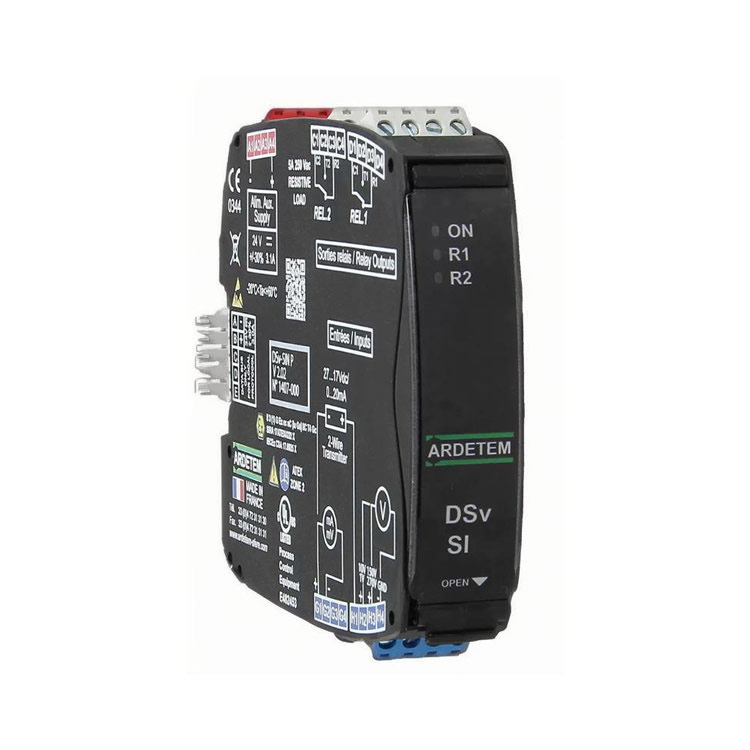

The DSv-SI P features intrinsically safe inputs: It is associated equipment placed in safe areas or ATEX/IECEx Zone 2.
It allows for mode simulation to verify configurations or installations.
Easy programming on the front via an LCD touch-screen micro-console or SlimSet PC software.
Technical Specifications
Setpoint Detector with Bidirectional Process Input, ATEX Intrinsically Safe
ATEX CE 0344 Ex II (1) GD [Ex ia] IIC Certification and [Ex iaD] Certification
Power Supply: 20 to 250 Vac and 20 to 250 Vdc
Bidirectional IS Input: Milliampere, Millivolt, Voltage
Output: 2 Changeover Relays
Supports 2-Wire Sensors
Accuracy: 0.1%
Response Time: 150 ms
Programmable Scaling Factor
Designed for DIN Rail Mounting
Programmable via Software or Micro-console (Optional)
