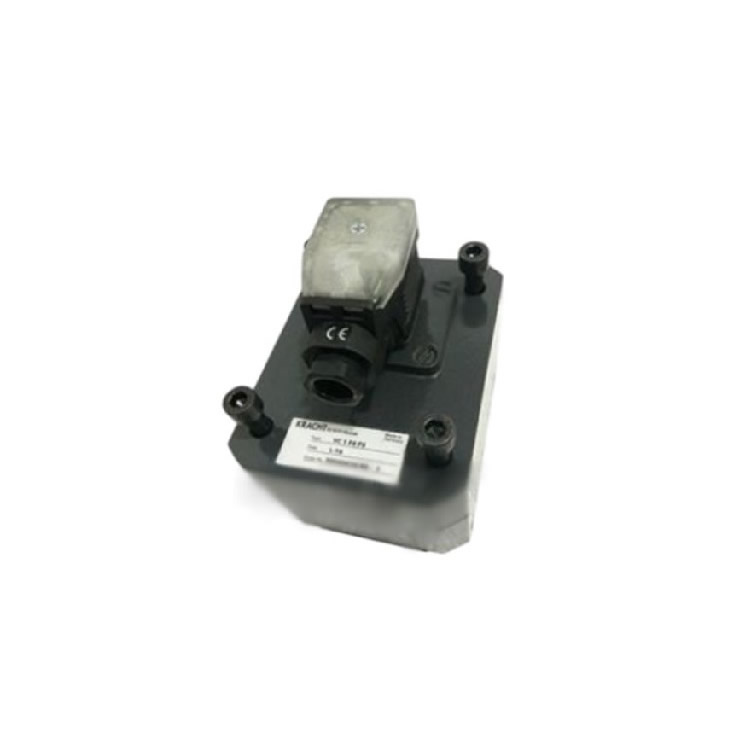

Germany-made Kracht SVC40A1F1F1V1 screw-type positive displacement flowmeter, with a measurement range of 1–1500 l/min, pressure resistance of 250 bar, accuracy of ±0.3%, and repeatability of ±0.05%.
It features a 316L housing, FKM seals, PNP+ pulse output, SAE 2" flange, and is suitable for fluids with viscosities ranging from 1–1,000,000 cSt. It operates within a temperature range of -20…+120 °C and offers an optional ATEX explosion-proof certification. With pulse-free and bidirectional metering capabilities, it is ideal for high-pressure and high-viscosity media such as hydraulic fluids, lubricants, and fuels.
