BIMBA PNEUMATIC CYLINDER, STANDARD CARBON STEEL ROD, 3/4" BORE, 1" STROKE
Designed to punch millions of holes in plastic or other thin sheet materials 2 to 3 mils thick, the long-life BIMBA Pneumatic Hole Puncher will give you more cycles per penny. The hardened steel cutter with ground razor sharp edges is an integral part of the cylinder.Asmall air jet ejects the slugs from the cutter preventing slug build up, and Elastomer Bumpers insure Cushion Quiet operation. Less than 1" in diameter, several cylinders can be closely mounted. Available in seven hole cutter sizes from 1⁄4" to 5⁄8".

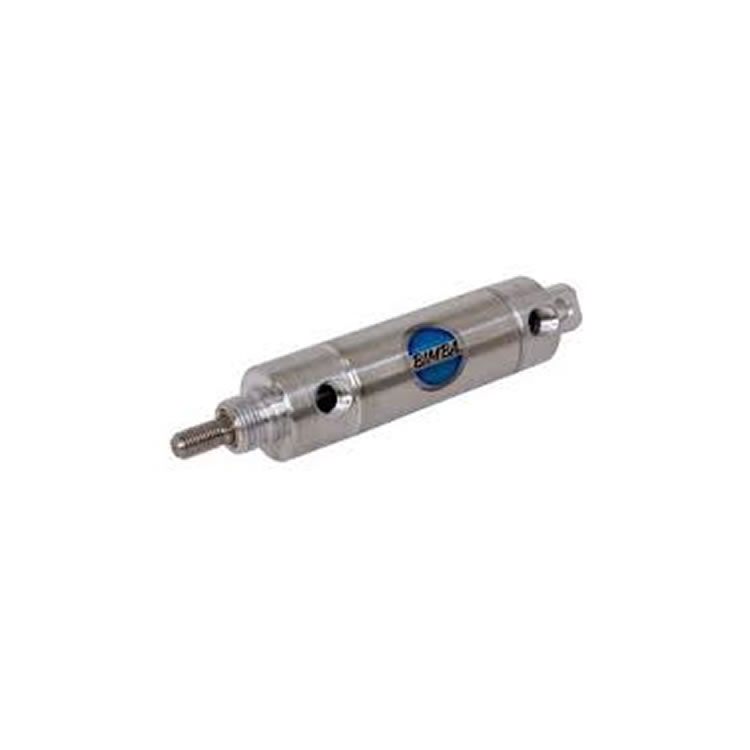

This stainless steel body, single-acting spring-return cylinder features a 3/4-inch bore and a 1-inch stroke. The nickel-plated steel rod guide is threaded for easy nose mounting, and a 1/8-inch NPT air inlet is conveniently located on the rear head. Prelubricated with HT-99, the cylinder can be operated using ordinary shop air at pressures up to 250 psi.
D-11840-A
D-9846-A (without the cutter under model)
D-11811-A
D-11618-A
D-11998-A
D-11999-A
D-12107-A
D-12108-A
