Type:
SLM 1A、SLM 3A、SLM 6A、SLM 12B、SLM 24A、SLM 48A、SLM 96A、SLM 192A
Material elastomer
CR with steel cores, black
Material screw
S235JR
Surface treatment
zinc-plated, chromated (CR VI free)
Working temperature range
from -30 to +70 °C
EC Norm
2002/95/EC (RoHS)
UNSPSC Code
UNSPSC-26101765

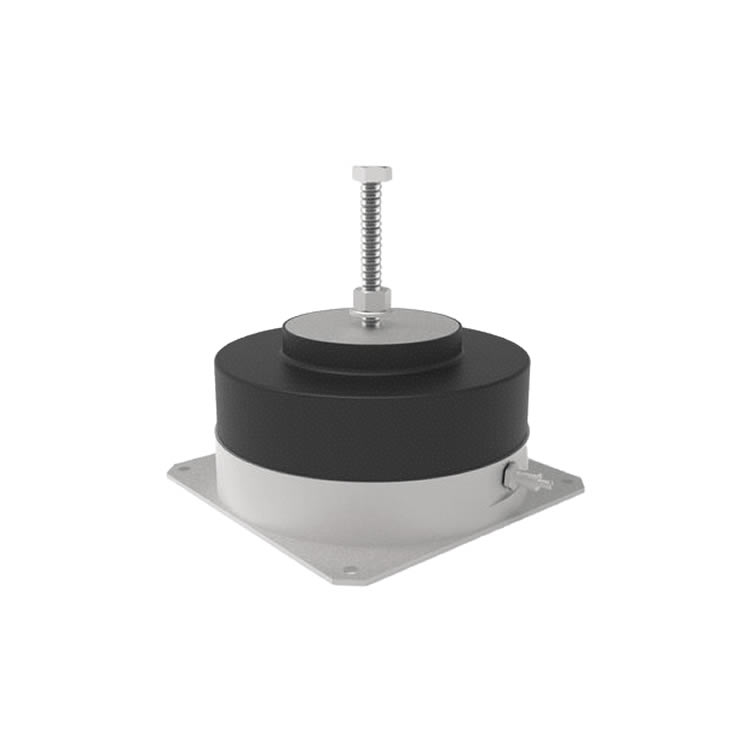

The air springs are based on an elastomer body reinforced with a steel ring. It enables an effective oscillation insulation. The elements are specified primarily of the frequency ratio and dynamic forces.
Application:
They are suitable for passive insulation of scales, gauges etc. also for the active insulation of slow running devices such as ventilators, compressors etc.
Version:
Depending on build height and load a natural frequency is reached between 3 and 5 Hz. By increasing or reducing the air pressure, the object can be leveled to the working height H between 65 and 90 mm.
Attention:
The elements may only be placed under load and according to type with maximal 5 to 6 bar of pressure.
