Type:
FS 40-6、FS 70-7、FS 200-10、FS 530-14
Material elastomer
NR/BR with reinforced polyamid cord, black
Material base plate
S235JR
Surface treatment
zinc-plated, chromated (CR VI free)
Operating pressure max.
8 bar
Working temperature range
from -40 to +50 °C
EC Norm
2002/95/EC (RoHS)
UNSPSC Code
UNSPSC-26101765
Product description:

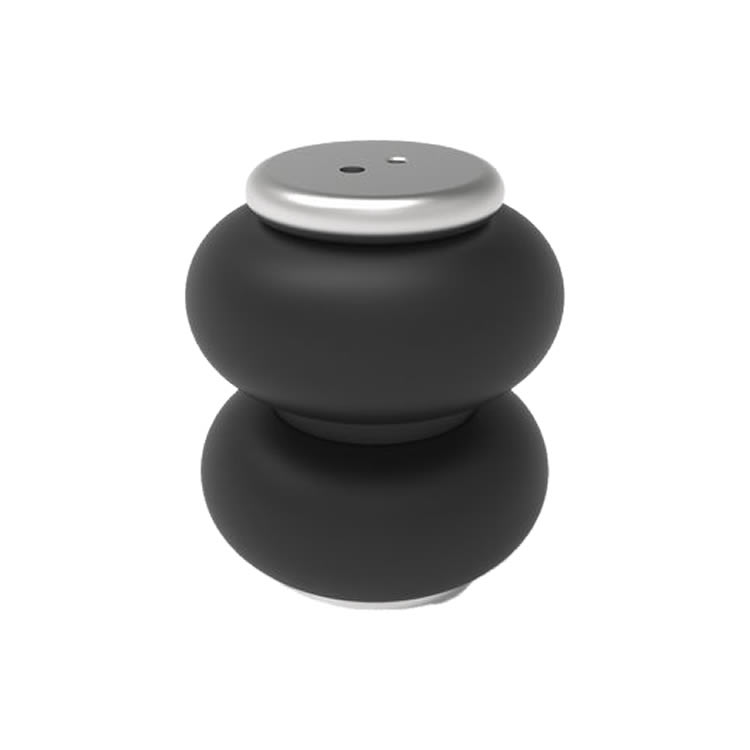

Single acting spring or lifting elements. The reset is done of the dead weight of the object lifted.l They are characterized of low installation height and good lateral stability.
Application:
As oscillation insulating elements they are used to dampen active and passive oscillations, to insulate structure-borne noise, vibrations and thrusts.
Version:
Singlefold bellows with flangedbase plate. The walls of the bellows are made of high quality elastomer layers, in which two layers of nylon cords are embedded as reinforcement.
Attention:
The flexible wall of the bellows operates without friction and enables slanting the base plate up to 30%, whereby the two varying side lengths may not exceed the specified belows height H max. and H min.
Assembly:
The base plate contains soldered in top hat mounting nuts, and a connection for the intake and exhaust air.
