Type:
LM1-2 (1220230102)、LM1-4 (1220230104)、LM1-6 (1220230106)、LM1-11 (1220230111)、LM3-6 (1220230306)、LM3-11 (1220230311)、LM3-25 (1220230325)、LM3-33 (1220230333)、LM5-11 (1220230511)、LM5-27 (1220230527)、LM5-42 (1220230542)、LM6-60 (1220230660)、LM6-66 (1220230660)、LM6-80 (1220230680)、LM7-77 (1220230777)、LM3-25 BA (1220231325)、LM5-27 BA (1220231527)、LM5-42 BA (1220231542)
Material elastomer
CR, black
Material case
S235JR or cast iron
Surface treatment
yellow lacquered
Working temperature range
from -30 to +80 °C
EC Norm
2002/95/EC (RoHS)
UNSPSC Code
UNSPSC-26101765

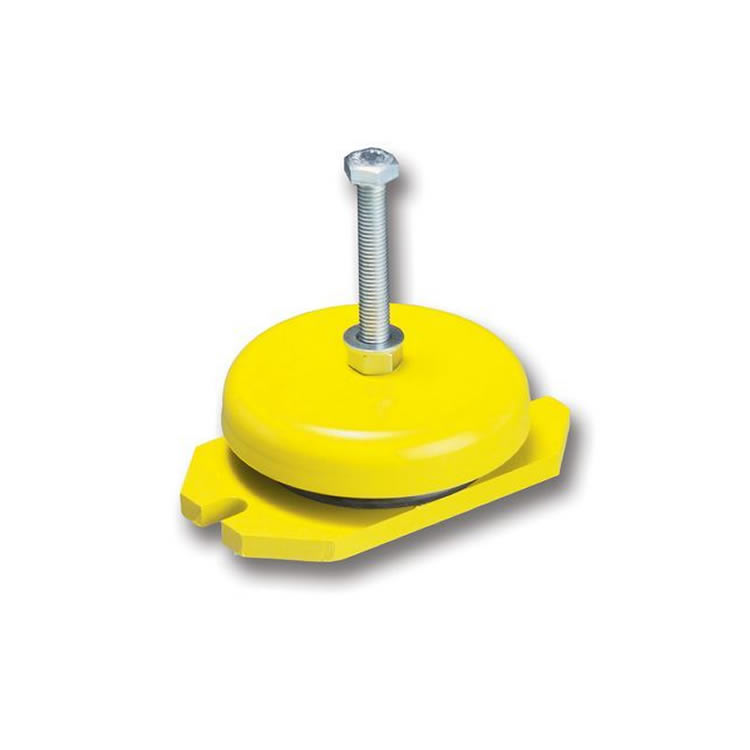

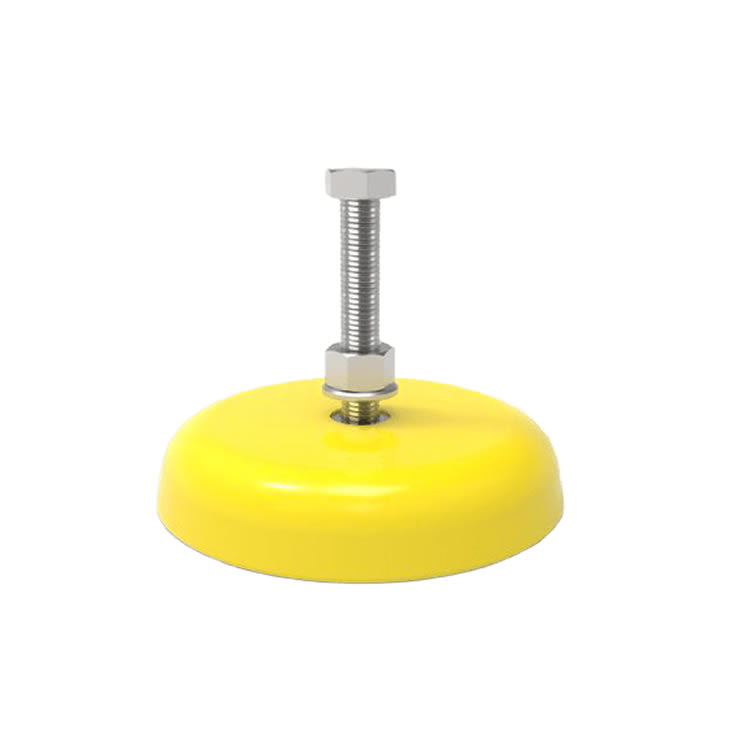

Product description:
High dynamic stress capacity and damping of oscillations and structure-borne noises, easy leveling of machines by changing the build height H. Height leveling according to type 15 - 20 mm.
Application:
Active and passive bearing; oscillation insulation, impact absorption, impact sound absorption.
Version:
With special leveling.
Attention:
The specified load capacity Fz is valid for the maximum static load; the elements are specified primarily of the frequency ratio and dynamic forces.
