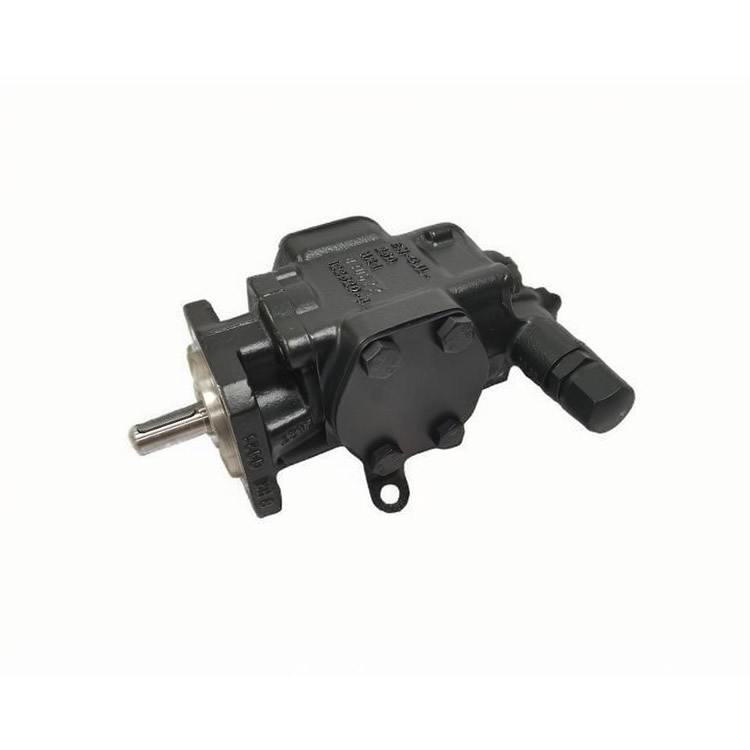

The R35/31.5 FL-Z-DB16-R is a high-pressure gear pump from RICKMEIER's R35 series, specifically engineered for conveying lubricants, greases, and various industrial fluids. Its core advantages lie in its high-pressure stability and long-life structure, making it suitable for demanding industrial environments. The pump body features a modular design that supports customized configurations (such as seal types and drive methods) to meet diverse industrial needs.
High-Strength Materials
Pump Housing: Gray cast iron (EN-GJL-250), offering corrosion resistance and impact resistance.
Gear Shaft: Carburized steel (1.7139/16MnCrS5) that has undergone hardening treatment, enhancing wear resistance by over 30%.
Efficient Fluid Design
Short and straight flow channels minimize pressure losses, ensuring high suction performance and low risk of cavitation.
Multi-component sliding bearings reduce frictional losses, with noise levels ≤70 dB(A).
Modular Components
DB16 Interface: SAE flange connection (SAE1.1/2), compatible with standard hydraulic piping.
