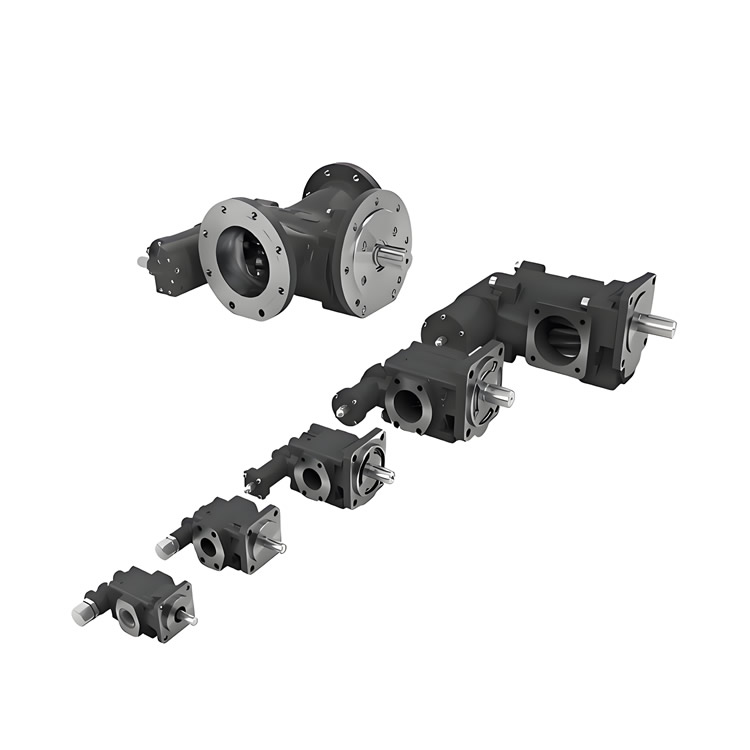

The Rickmeier R35/63 FL-Z-DB6-W-SAE2-R is a German-made gear oil pump, a standard model in the R5 series, specifically designed for industrial hydraulic systems and lubricant conveyance. Its core advantages lie in its high reliability, low-noise operation, and flexible adaptability, making it suitable for a variety of demanding operating conditions.
Modular Housing Design
The pump features a three-part housing assembly that supports flexible adaptation to customer-specified interfaces, facilitating easy integration into different systems.
Low Noise and Efficient Conveyance
The gears have been optimized with a special tooth profile, paired with a short and straight flow channel design, achieving low risk of cavitation and smooth flow.
Large-sized composite-coated sliding bearings enhance tolerance to dry running and extend service life.
Materials and Durability
Housing: Gray cast iron (standard version); Gears: Surface carburized and quenched steel.
The bearing system is designed for high loads, reducing wear.
Industry Coverage: Petrochemicals, marine power, wind power generation, food processing, metallurgy, mining equipment, printing machinery, and concrete construction.
Typical Applications:
Power source for hydraulic systems (e.g., hydraulic stations in construction machinery).
Lubricant conveyance (requires non-corrosive media without solid particles).
Insulation processes in cold regions (supports conveyance of coagulable media).
