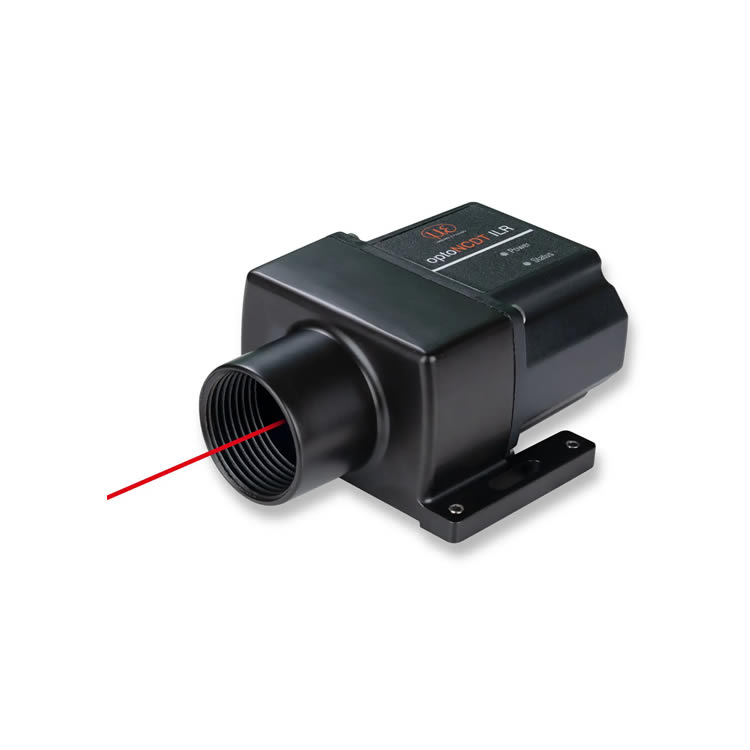

The optoNCDT ILR3800-100 laser distance sensor stands out with its high-performance, compact design, engineered for precise distance measurement in industrial environments. It offers a measuring range of up to 100 m, extending to 150 m when used with a reflector. The integrated AUTO measurement mode ensures reliable measurements even on dark, partially reflective, or distant targets. Thanks to its exceptional signal stability, the ILR3800-100 sensor is suitable for distance measurements across a wide variety of surfaces.
Key Features
Extended measuring range: Up to 100 m (150 m with reflector).
High signal stability on diverse surfaces.
Linearity: <±1 mm.
Repeatability: <300 µm.
Resolution: 0.1 mm.
Outputs and interfaces: Analog output and digital interfaces (RS422 / USB / PROFINET / Ethernet/IP).
Robust sensor design.
Compact and lightweight construction.
Ideal for industrial applications in serial production.
Compact Sensor Design for Versatile Measurement Tasks
The laser distance sensor impresses with its exceptional signal stability and is widely deployed in logistics, automation technology, the metals industry, and production monitoring. Its rugged aluminum housing and low weight facilitate seamless integration into numerous industrial environments.
