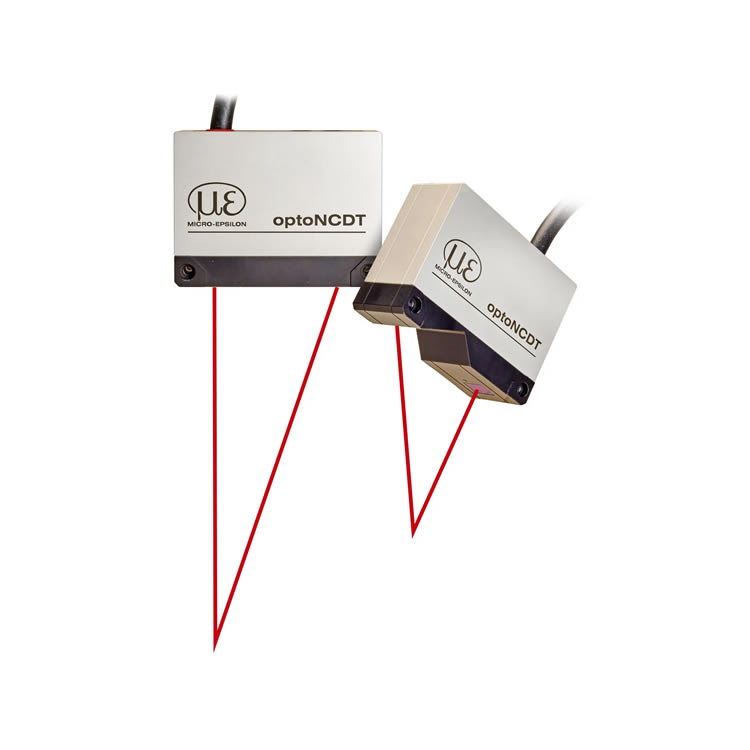

The optoNCDT 5500 laser sensors set new standards in high-precision laser distance measurement. With submicron precision and an impressive measuring rate up to 75 kHz, the sensors are perfect for dynamic measurements of displacement, distance, vibration and position. Due to its integrated controller, the compact sensor does not require any external control units and can be easily integrated even in confined installation spaces. Maximum performance in the smallest of spaces - the optoNCDT 5500 series.
Characteristics:
Measuring ranges (mm): 10 | 25 | 100 | 200
Linearity from 1.5 µm
Repeatability from 0.15 µm
Adjustable measuring rate up to 75 kHz
Compact sensor design with integrated controller
Outputs: Ethernet, RS422, analog output, switching outputs
High-speed adaptation to changing surfaces
