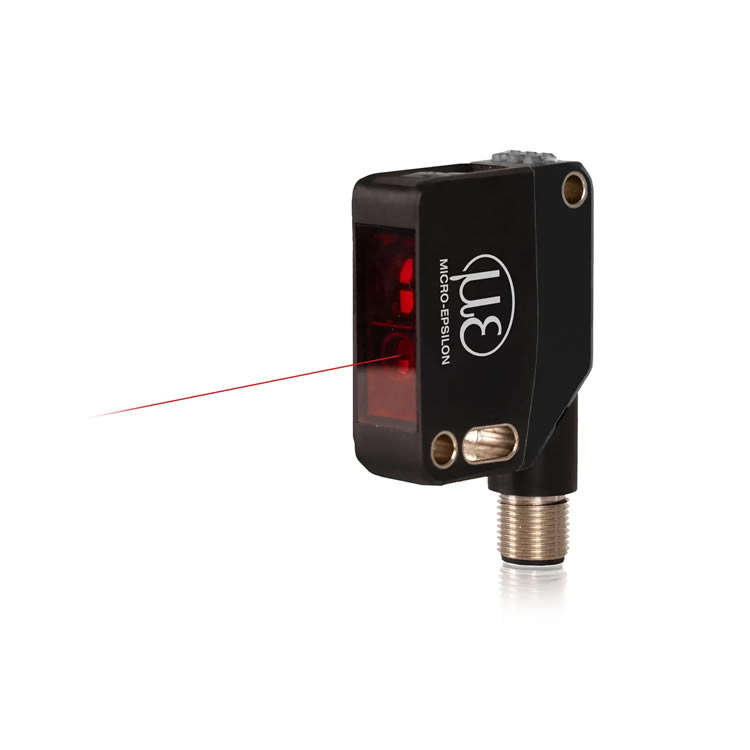

Compact and reliable laser distance sensor:
The optoNCDT ILR104x laser distance sensors are designed for distance measurements of 10 meters without reflector film and 60 meters with reflector film. The sensors are characterized by a high degree of protection and resistance to ambient light. The ILR104x sensors can be put into operation quickly and easily via the IO-Link interface. Due to its rotatable cable outlet and its compactness, the sensor can also be mounted in difficult-to-access and narrow places.
Technology Used:
Time-of-Flight (ToF) laser technology.
Outputs:
Analog output, IO-Link.
Electrical Connection:
M12 connector.
Protection Rating:
IP67, IP69K, IP69, designed for harsh and demanding industrial environments.
Additional Features:
Non-contact measurement, high precision, compact design.
Ideal for automation applications, compatible with reflectors.
Laser safety class 1 (eye-safe).
Distance Range:
Maximum: 6,000 cm
Minimum: 3 cm
