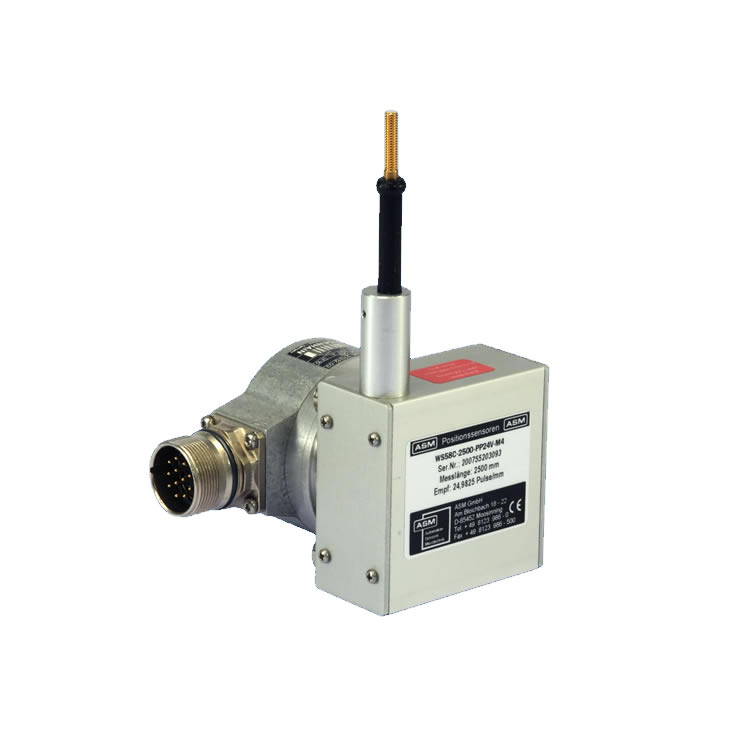

The ASM posiwire® WS58C is a compact, high-precision draw-wire displacement sensor featuring magnetic absolute encoder technology, with a measurement range of up to 2500 mm and protection ratings up to IP68/IP69K. It offers high resistance to vibration and shock, delivers linearity up to ±0.01%, and is ideally suited for precise positioning applications in industrial automation.With optical encoder
Specifications:
Resolution - Incremental: up to 10 µm
Absolute: up to 40 µm
higher resolutions optionally available
Sensing device - Optical encoder
Housing material - Aluminum, stainless steel
Measuring cable: stainless steel
Connection - Depends on encoder type: connector or bus cover
Weight - Max. 0.6 kg (depending on encoder)
