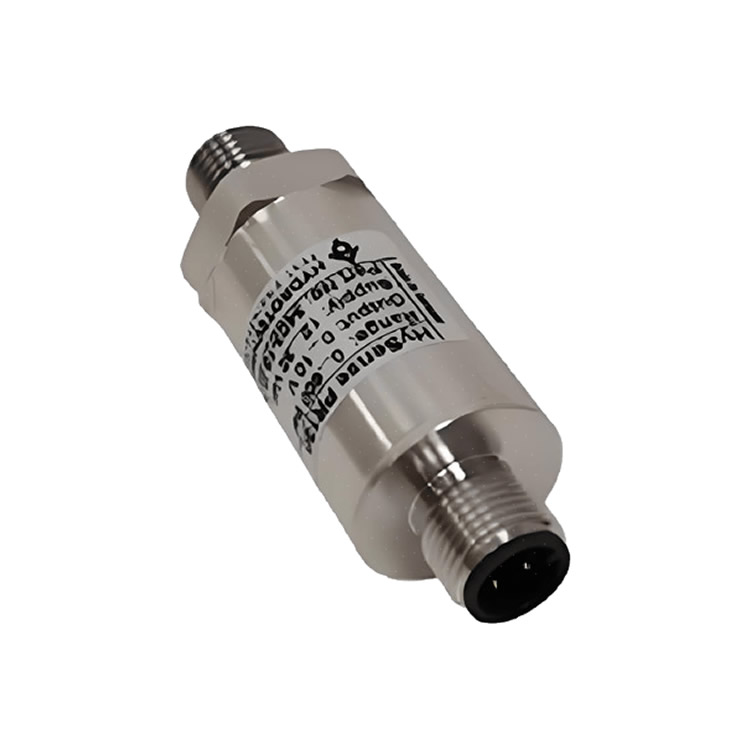

German Hydrotechnik 3403-18-I5.39 Pressure Sensor
Measurement Principle: It employs the piezoresistive principle, achieving pressure measurement through the deposition of a polycrystalline silicon thin film on a stainless steel diaphragm.
Pressure Type: Relative pressure sensor.
Output Signal: It can output a 4 - 20 mA current signal or a 0 - 10 VDC voltage signal.
Connection Method: The electrical measurement connector is a 4-pole device connector; the mechanical connection thread adopts the ISO 228 - G¼A standard; the sealing material is an FKM sealing ring conforming to DIN 3869.
Protection and Material: It has a protection rating of IP 67 (when the connector is tightened). Both the housing and diaphragm materials are non-corrosive high-grade steel, ensuring its durability and stability.
Application Fields: Due to its high precision, good vibration resistance, and stability, it is widely used in fields such as construction machinery, metallurgy, machine tools, and automobiles.
