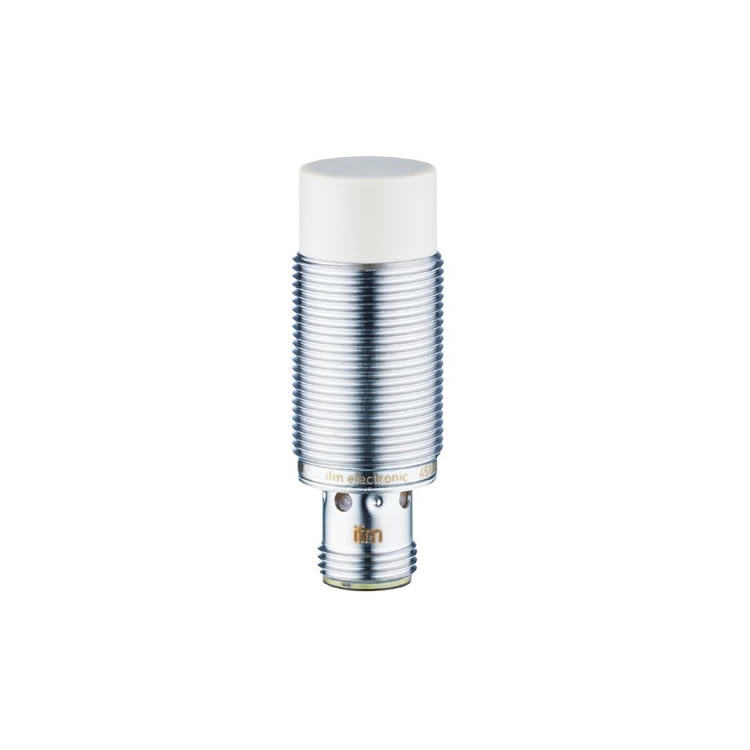

IFM IGT200 Inductive sensor
Wide operating temperature range
High protection rating for the requirements of harsh industrial environments
Resistant to high-pressure cleaning with aggressive cleaning agents
Robust stainless steel housing for use in the food and beverage industry
Temperature shock resistant even in case of frequent temperature fluctuations
Electrical design:PNP
Output function:normally open
Sensing range[mm]:12
Housing:threaded type
Dimensions[mm]:M18 x 1 / L = 50
Operating voltage[V]:10...30 DC
Current consumption[mA]:< 10
Protection class:II
Reverse polarity protection:yes
Ambient temperature[°C]:0...100
Protection:IP 68; IP 69K
