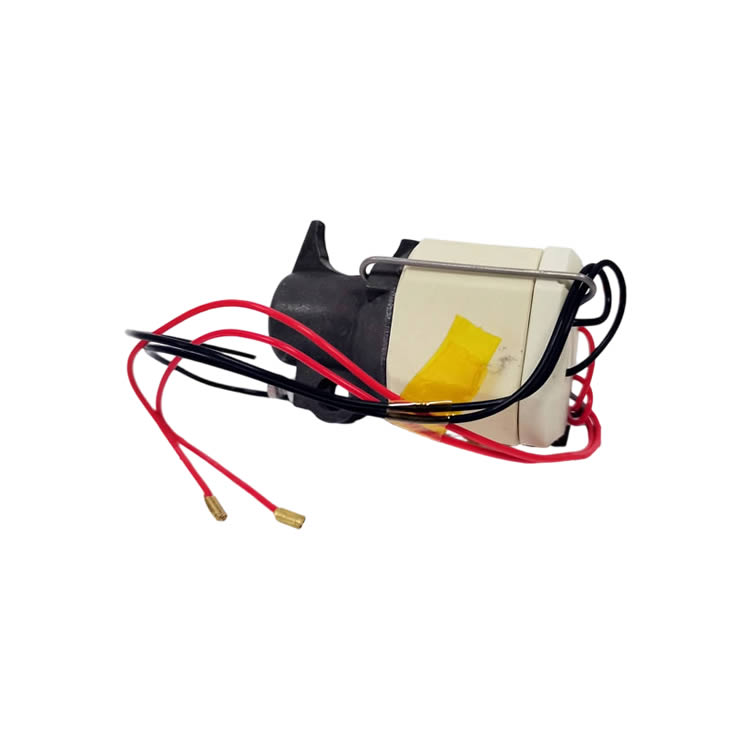

MOBREY SK178 Float Level Switch Mechanism
Brand: MOBREY
Model: SK178
Model Number Breakdown
SK178: MOBREY original replaceable switch mechanism (spare part number), magnetic coupling snap-action switch assembly, supplied without float and housing.
Specifications
| Item | Specification |
|---|---|
| Operating Principle | Magnetic repulsion snap-action, spring-free design, float magnet drives internal permanent magnet through isolation wall to toggle contacts |
| Contact Configuration | DPDT, two independent changeover contacts |
| Contact Rating | 250V AC, max. 5A |
| Sealing Method | Hermetic metal seal, contacts fully isolated from steam and moisture |
| Max. Media Temperature | 200°C |
| Compatible Conditions | High-pressure boiler drums, pressure vessels, explosion-proof housing available |
| Mechanical Life | Millions of operating cycles, vibration resistant, no contact bounce |
| Weight | Approx. 0.24kg |
| Compatible Body | MOBREY S01, S03 horizontal float level switches |
Features
Spring-free magnetic toggle structure provides strong vibration resistance; contacts will not bounce or stick under boiler vibration conditions. Hermetically sealed package fully isolates contacts from process media, preventing corrosion in steam and humid environments. Magnetic coupling non-contact drive eliminates mechanical linkage through the pressure vessel, removing the risk of media leakage. Independent modular spare part; when float and chamber are intact, only the SK178 mechanism needs replacement to restore the level switch, significantly reducing maintenance cost. DPDT dual changeover contacts provide simultaneous high and low level signals, meeting both alarm and interlock requirements.
Applications
Power plant boiler drum water level monitoring, pressure vessel high/low level alarms, pump start/stop interlocks, petrochemical tank farms, water treatment pressure vessel level protection.
