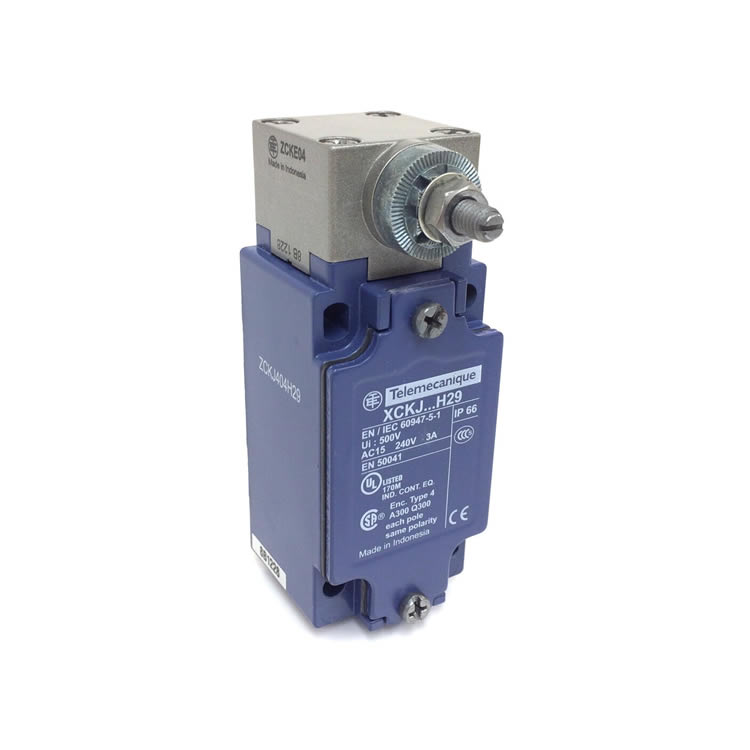

Telemecanique ZCK-J404H29 Limit switch
Core parameters
Project specifications
Contact configuration: 2NO + 2NC (4 contacts)
Rated current: 10A @ 600V AC / 10A @ 250V DC
Mechanical life: 1,000,000 operations
Electrical life: 100,000 times (under rated load)
Protection level: IP67 (dustproof and waterproof, can be temporarily immersed)
Operation head type: roller rocker type (adjustable angle)
Operation force: ≤1.5 N (rocker trigger)
Operating temperature: -40°C ~ +85°C
Material housing: die-cast zinc alloy
Contact: silver alloy
Product features
Durability in extreme environments
Shock resistance: 50G mechanical shock resistance (in accordance with IEC 60068-2-27).
Corrosion resistance: salt spray test 500 hours (ISO 9227), suitable for harsh environments such as ships and mines.
Flexible installation
Provides M20 cable entry and standard bracket holes to support horizontal/vertical multi-directional installation.
The swing arm angle is adjustable (±90°) to adapt to different mechanical trajectories.
High load capacity
Directly control small motors and solenoid valves (no intermediate relay required).
Safety redundancy
Double contact design (NO+NC) can be used for safety circuit interlocking.
Visual status
Red/green mechanical indicator window for quick identification of switch status.
Typical applications
Construction machinery: Excavator arm limit position protection
Automated production line: Conveyor belt travel control
Lifting equipment: Crown crane end limit
Iron and steel metallurgy: Roller positioning of rolling mill
