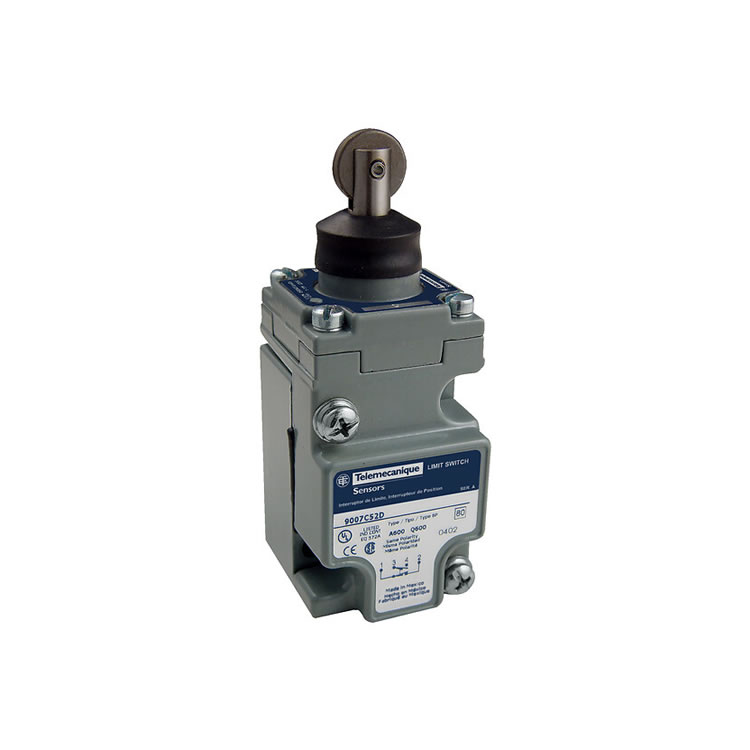

Limit switch, 9007, 600 V 10amp c +options
Range of product: 9007
Series name: Heavy duty
Product or component type: Limit switch
Product specific application: Compact box
Device short name: 9007C
Body type: Plug-in
Head type: Plunger head
Material: Metal
Fixing mode: By the body
Movement of operating head: Linear
Type of operator: Steel spring return roller plunger (-)
Switch actuation: By 30° cam
Type of approach: Lateral approach, 2 directions
Electrical connection: Screw-clamp terminals (AWG 22...AWG 12), 1…2
Cable entry: 1 entry for 1/2" - 14 NPT conforming to ANSI B1.20.1
Number of poles: 1
Contacts type and composition: NC-NO
Contact operation: Snap action
Positive opening: Without
Sale per indivisible quantity: 1
