SICK YG2A15-050VB5XLEAX Sensor/actuator cable

Date: 2025-05-22

Brand: SICK

Models: YG2A15-050VB5XLEAX

Price: Phone or Email Inquiry

Do you have any questions about this product? Please contact our customer service by phone number +852 30623028 Or Quick Inquiry Form.

Product Overview

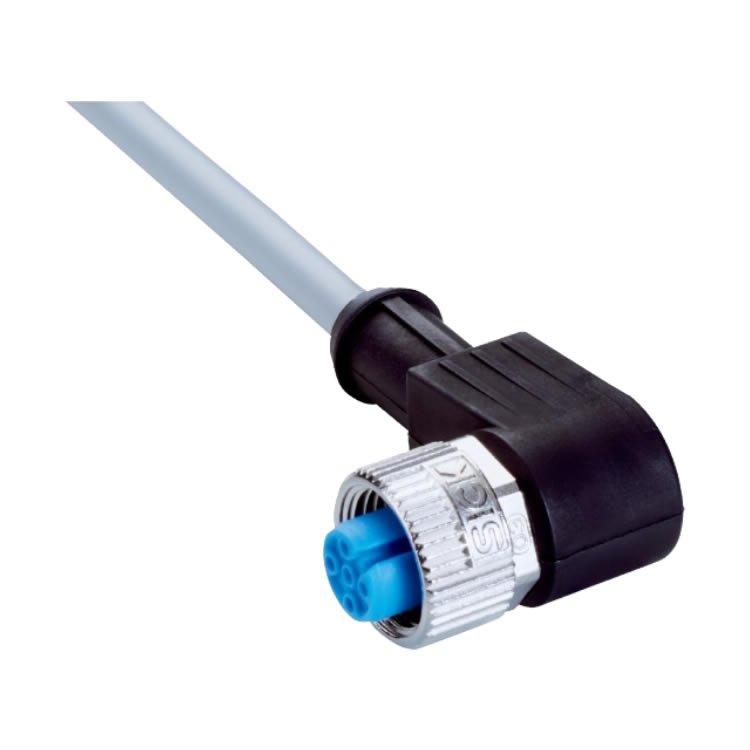

SICK YG2A15-050VB5XLEAX Sensor/actuator cable

Connector material: TPU

Connector color: black

Locking nut material: nickel-plated zinc die-cast

Seal material: FKM

Tightening torque: 0.6 Nm

Across-flat width: 13

Cable: 5 m, 5-core, PVC

Sheath material: PVC

Sheath color: gray

Cable diameter: 5.2 mm

Conductor cross-section: 0.34 mm²

Bending radius:

Flexible application: > 10 x cable diameter

Fixed position: > 5 x cable diameter

Rated cable voltage: 300 V AC

Cable test voltage: 2,000 V AC

Rated impulse voltage: 1.5 kV

Current load: 4 A

Enclosure protection class IP65 / IP66K / IP67
