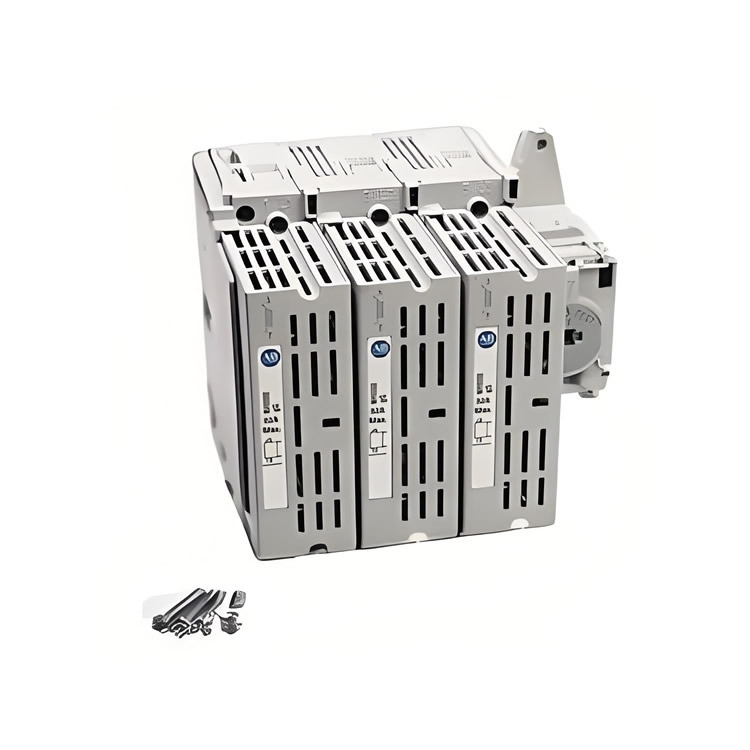

194R-B20-1753-PYN1
• Product Line: Allen-Bradley Bulletin 194R
• Type: Fused Disconnect Switch
• Applicable Standards: Primarily designed for IEC standards (e.g., IEC 60947-3), not suitable for North American applications.
Electrical Specifications
Parameter Specification Value Notes and References
Rated Current 20 A Refers to the rated current of the switch body.
Fuse Type BS88 Specifically designed for BS88-type fuses. The documentation repeatedly emphasizes that BS88, DIN, and NFC-type fuses are not suitable for North American applications.
Rated Voltage 660/690V AC This voltage rating is a typical specification for the compatible BS88 fuses.
Breaking Capacity 80 kA This breaking capacity is based on the compatible BS88 fuses.
Utilization Category AC-23A Suitable for switching on and off squirrel-cage motors, where short circuits may occur during operation.
