BALLUFF BNI-PNT-508-005-Z015 Module-Electrical-Effsen Automation

BALLUFF BNI-PNT-508-005-Z015 Module

Date: 2025-05-15

Models: BNI-PNT-508-005-Z015

Price: Phone or Email Inquiry

Do you have any questions about this product? Please contact our customer service by phone number +852 30623028 Or Quick Inquiry Form.

Product Overview

BALLUFF BNI-PNT-508-005-Z015 Module

Network modules for specialized applications (Silver Line)

Key features

Interface:Profinet

Auxiliary interfaces:8x IO-Link

Port-class:Type A

Output current max.:2 A

Fast Start-Up (FSU):yes

Display:no

Operating voltage Ub:18...30.2 VDC

Connection (COM 1):M12x1-Female, 4-pin, D-coded

Connection (COM 2):M12x1-Female, 4-pin, D-coded

Connection (supply voltage IN):7/8"-Male, 5-pin

Connection (supply voltage OUT):7/8"-Female, 5-pin

Connection slots：8x M12x1-Female, 5-pin, A-coded

Digital inputs：16x PNP, Type 3

Digital outputs：16x PNP

Configurable inputs/outputs：yes

Current sum US, sensor：9.0 A

Current sum UA, actuator：9.0 A

Housing material：Die-cast zinc, nickel-plated

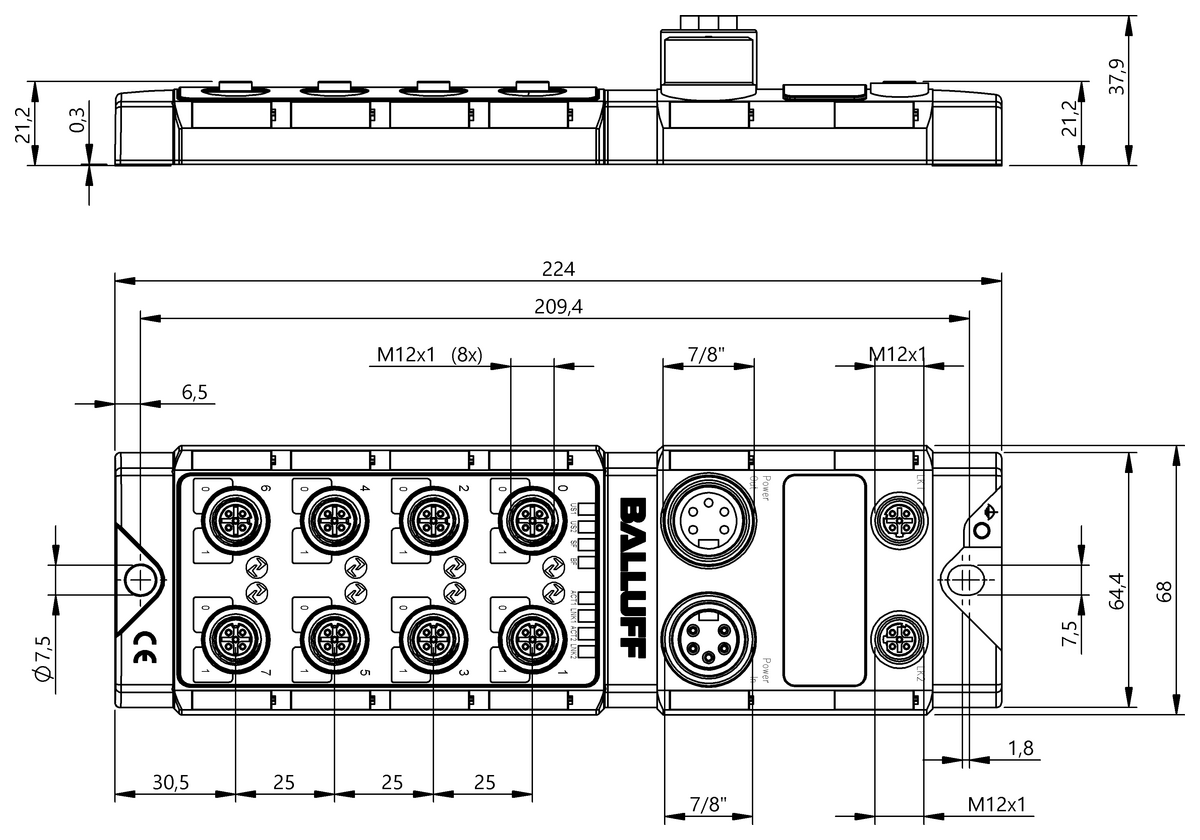

Dimension：68 x 37.9 x 224 mm

Ambient temperature：-5...70 °C

IP rating:IP67

IO-Link version:1.1

Safety Hub Support:yes

IO-Link Master
